Figure 4

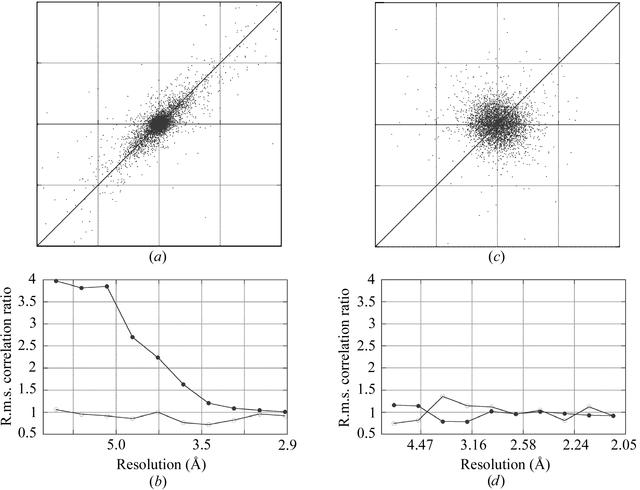

Significance of anomalous signals from random half data sets. (a) Scatter plot of ΔIanom pairs for the peak data set shown in Fig. 3 ![[link]](../../../../../../logos/arrows/d_arr.gif) , showing a strong correlation. (b) R.m.s. correlation ratio (see text) as a function of resolution: filled circles, acentric data; open circles, centric data. (c) Scatter plot for a native data set, showing no anomalous signal. (d) R.m.s. correlation ratio for native data set. |
