![[Figure 3]](be5120fig3mag.jpg)
|
|
Figure 3

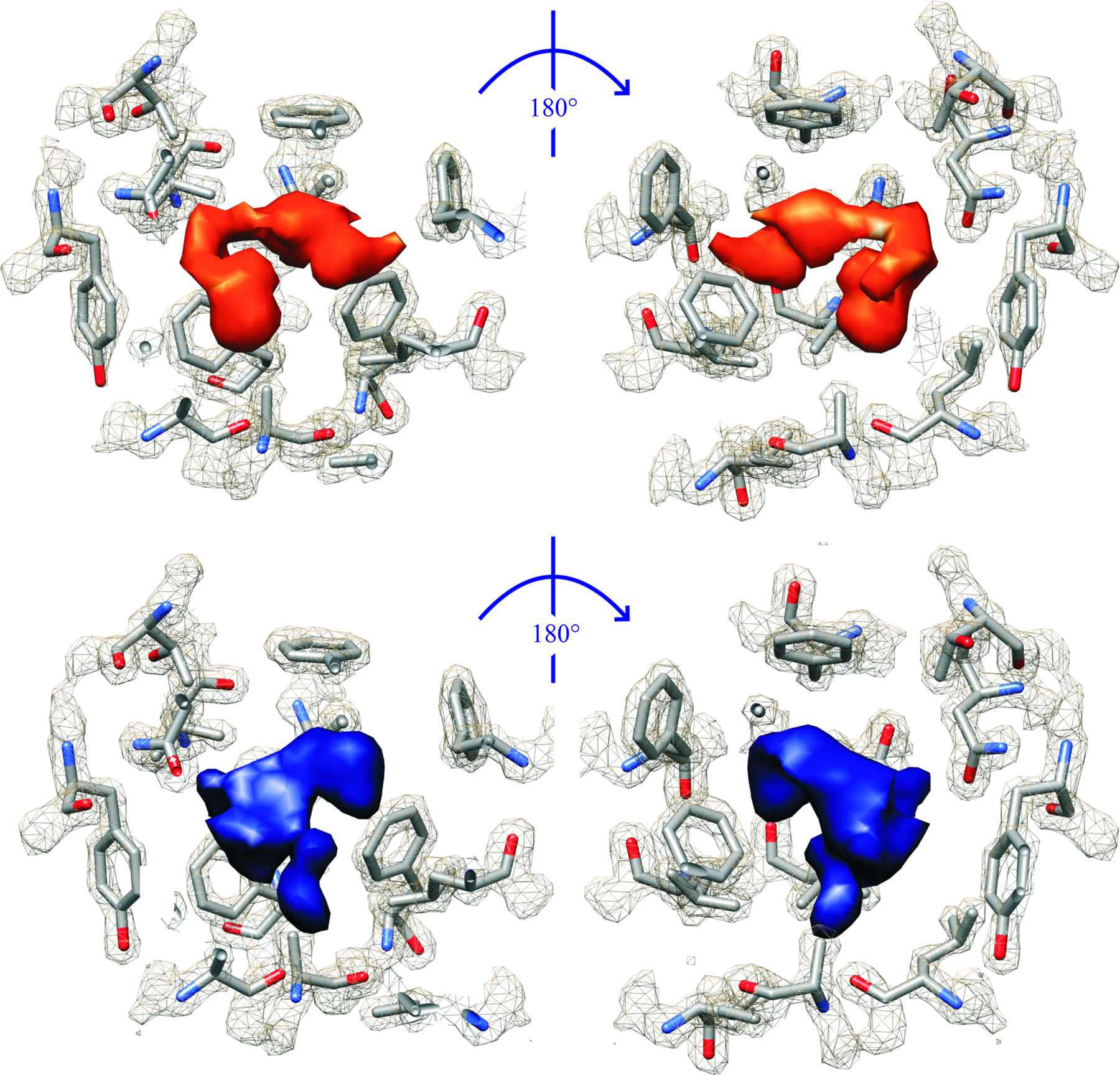

Unassigned density in the binding pockets of OBP1 monomer A (orange) and OBP1 monomer B (blue). Both the Fo − Fc and the 2Fo − Fc maps were normalized so that the r.m.s. noise was scaled to 1.0σ. The contour level of both maps is 2 and they were generated without surface smoothing using the program UCSF Chimera (Pettersen et al., 2004  ). Only the residues that contact the binding pocket are shown and those closest to the viewer have been clipped in order to better visualize the unassigned density. |
