A high-resolution data set of fatty acid-binding protein structures. II. Crystallographic overview, ligand classes and binding pose

Ehler, A.; Benz, J.; Rudolph, M.G.

doi:10.1107/S2059798325005728

Acta Crystallographica Section D
Acta Crystallographica
Section D STRUCTURAL BIOLOGY

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 3

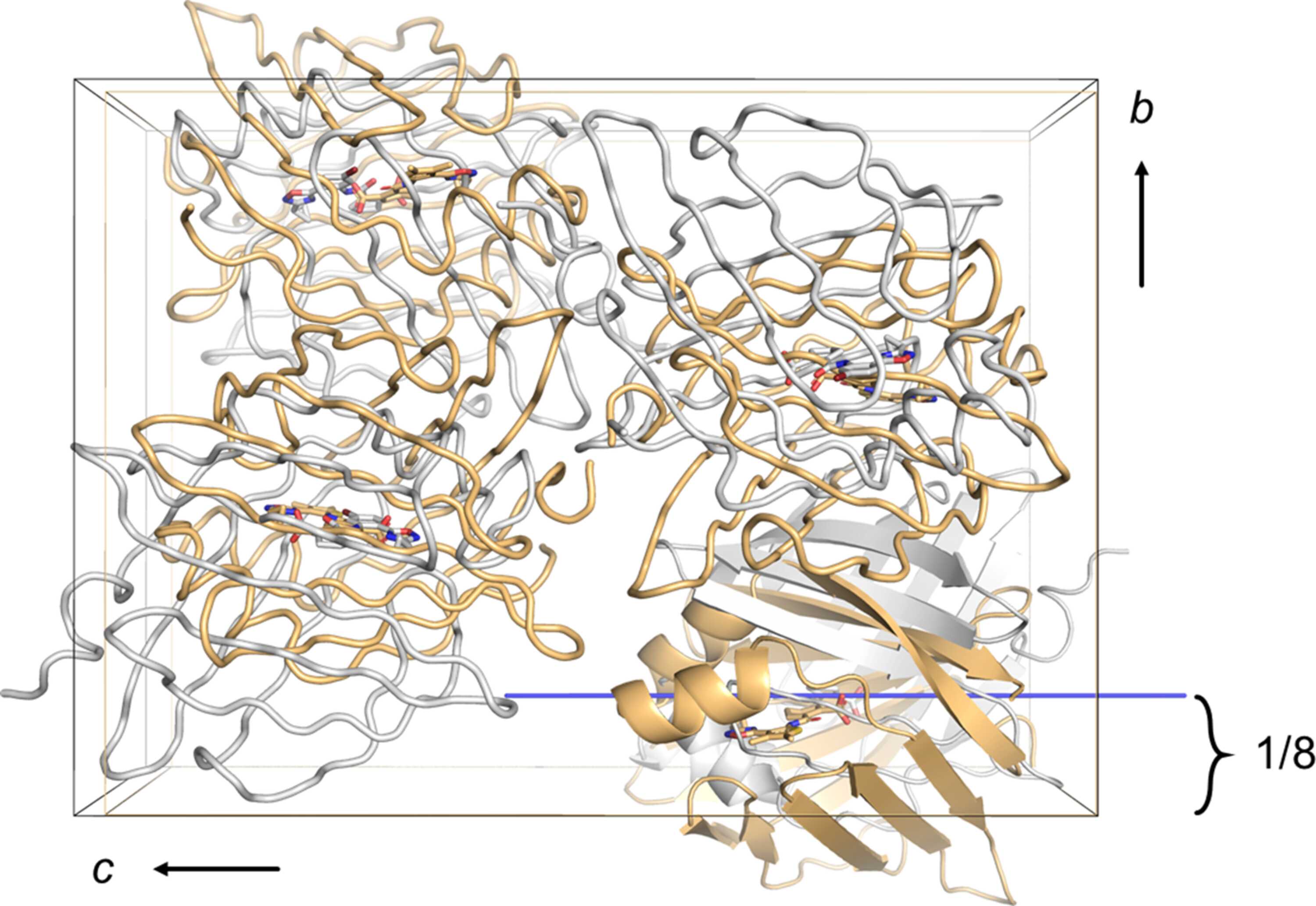

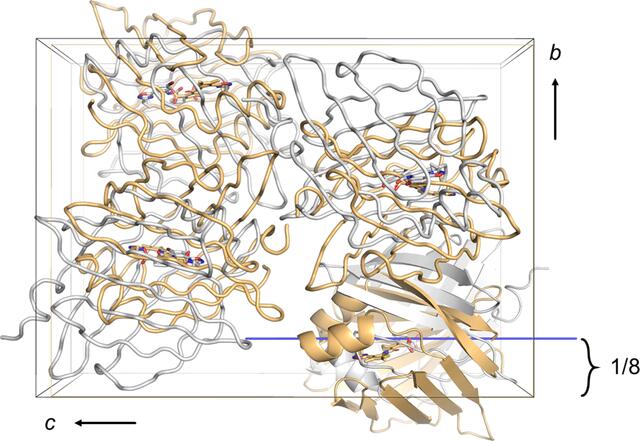

Two different crystal forms of FABP4 with quite similar cell dimensions have different packing in different space groups. Gray: 7fzw, hFABP4 in space group 19 or P2₁2₁2₁. Sand: 7g0o, hFABP4_5 in space group 18 (setting 3018 with unique axis a, i.e. P22₁2₁). The two asymmetric units are related by a roughly 150° rotation about an axis that is near-parallel to the c axis and located at ∼1/8 along the b axis (blue). Molecules displayed as tubes are symmetry equivalents.

STRUCTURAL
BIOLOGY

ISSN: 2059-7983

Volume 81| Part 8| August 2025| Pages 436-450

https://doi.org/10.1107/S2059798325005728
