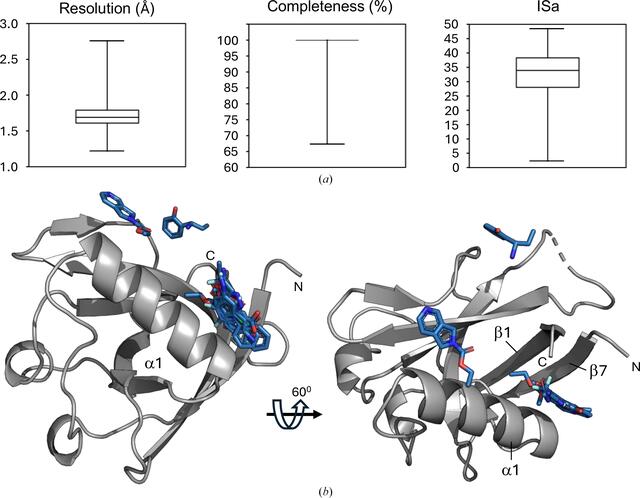

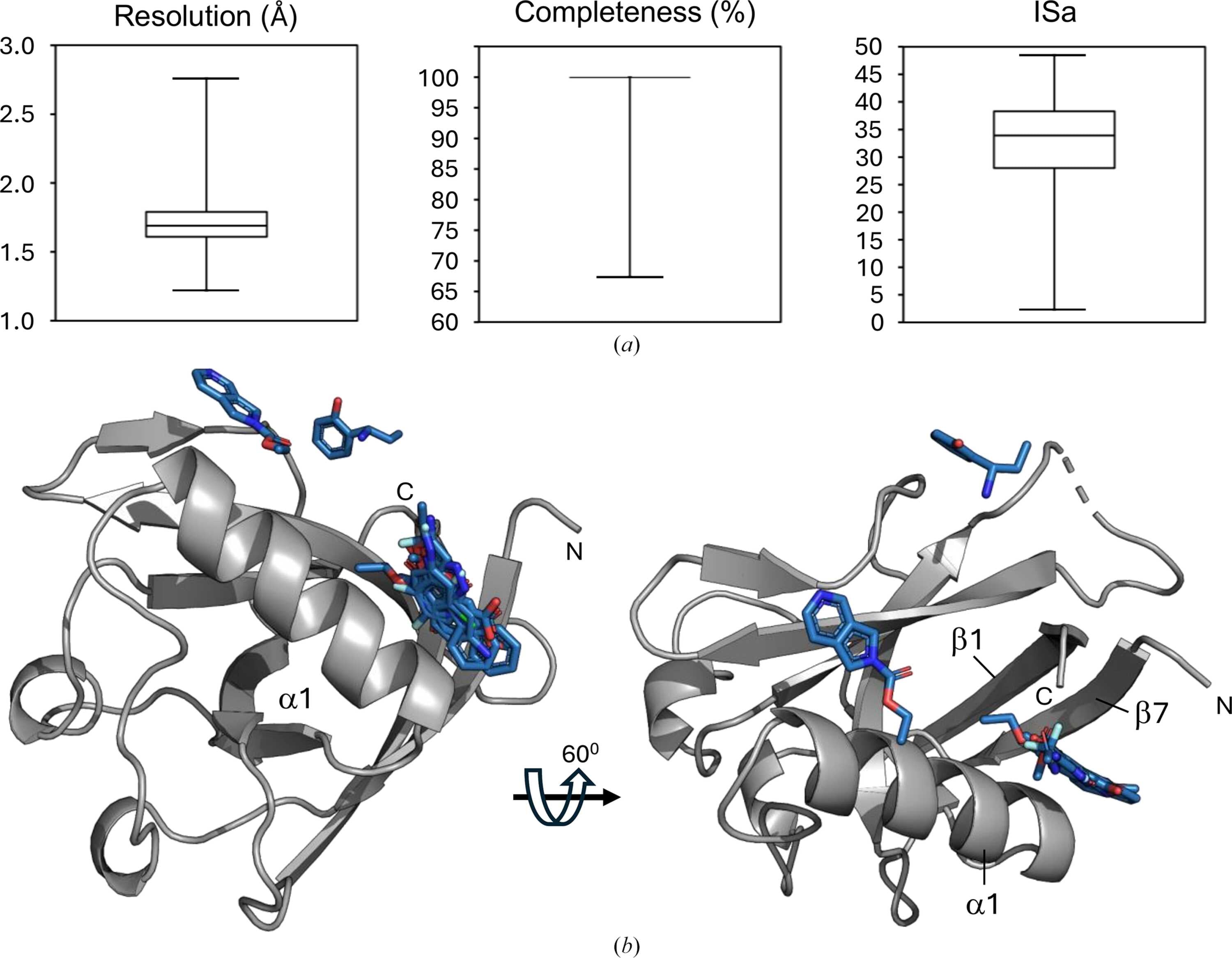

Data-quality statistics and overview of the hits for the F2X-Entry CFS campaign. (a) The resolution of the data sets, the completeness and the ISa value are shown as box plots. The size of the box indicates the 25th and the 75th percentiles and whiskers show the 1st and 99th percentiles for each quality indicator. In the case of completeness, the interquartile range is only 0.1; therefore, the box is not visible in the plot. (b) Nsp1NTD is shown as a grey cartoon, and fragment hits are shown as blue sticks. The secondary-structure elements that constitute the binding pocket are indicated. N and C indicate the N- and C-terminus, respectively. |
