![[Figure 2]](vo5019fig2mag.jpg)
|
|
Figure 2

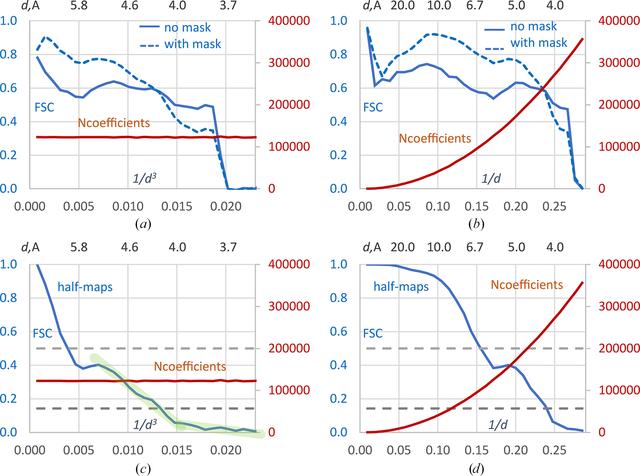

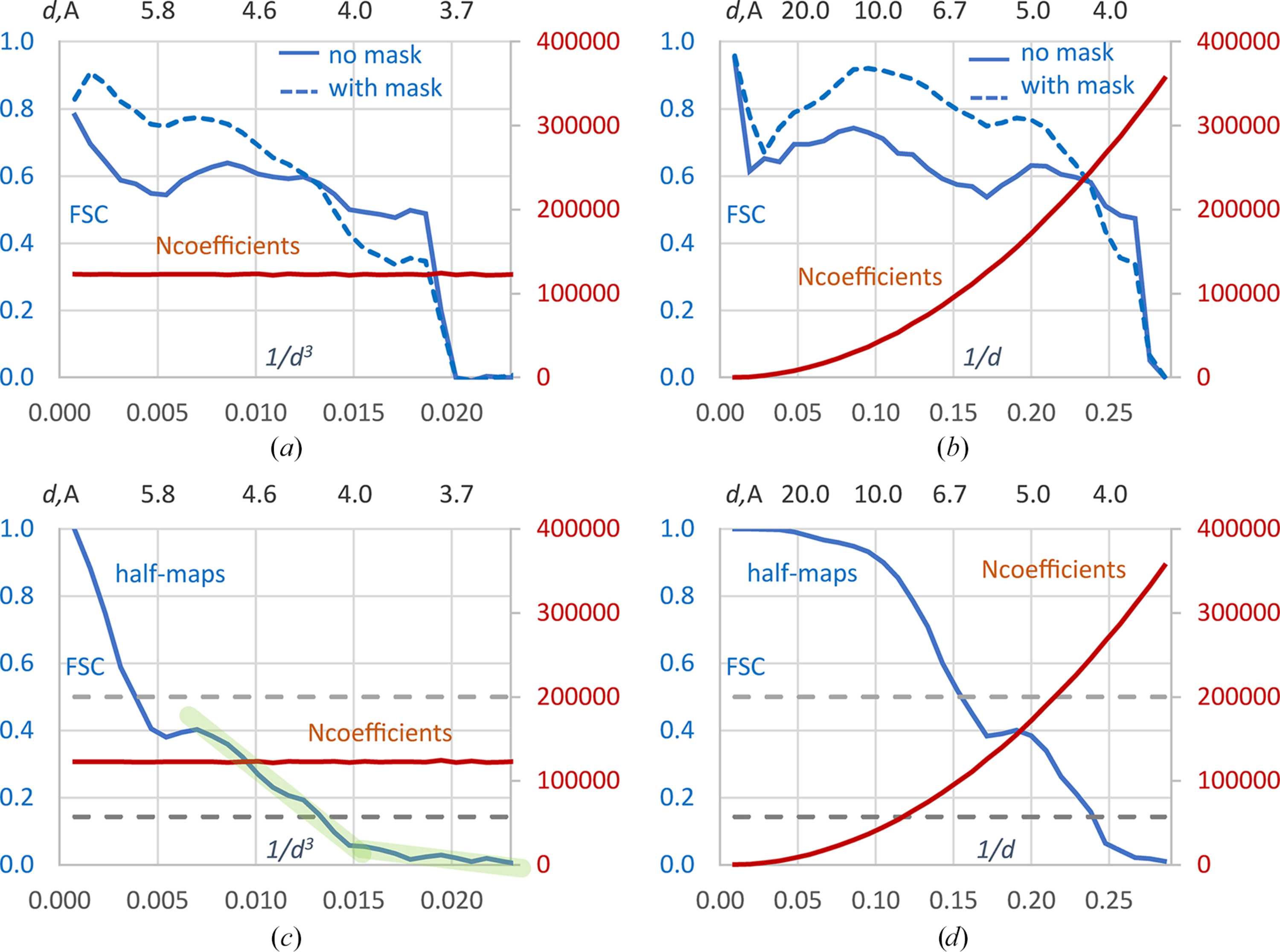

FSC curves for PDB entry 5vn3/EMDB entry EMD-8713 cryoEM data. (a) FSC values between the model coefficients and those calculated from the unmasked and masked experimental maps, uniform scale in Å−3. (b) The same as (a) but uniform scale in Å−1. (c) FSC values calculated between two experimental half-maps, uniform scale in Å−3. (d) The same as (c) but uniform scale in Å−1. Red curves show the number of the Fourier coefficients in resolution shells (scale on right). The upper axis shows the resolution recalculated in Å. Dashed lines indicate FSC values of 0.143 and 0.5. Direct lines in light green indicate two parts of the piecewise linear approximation to the FSC curve calculated on the Å−3 uniform scale. |
![[Figure 2]](vo5019fig2.jpg)
