![[Figure 3]](vo5019fig3mag.jpg)
|
|
Figure 3

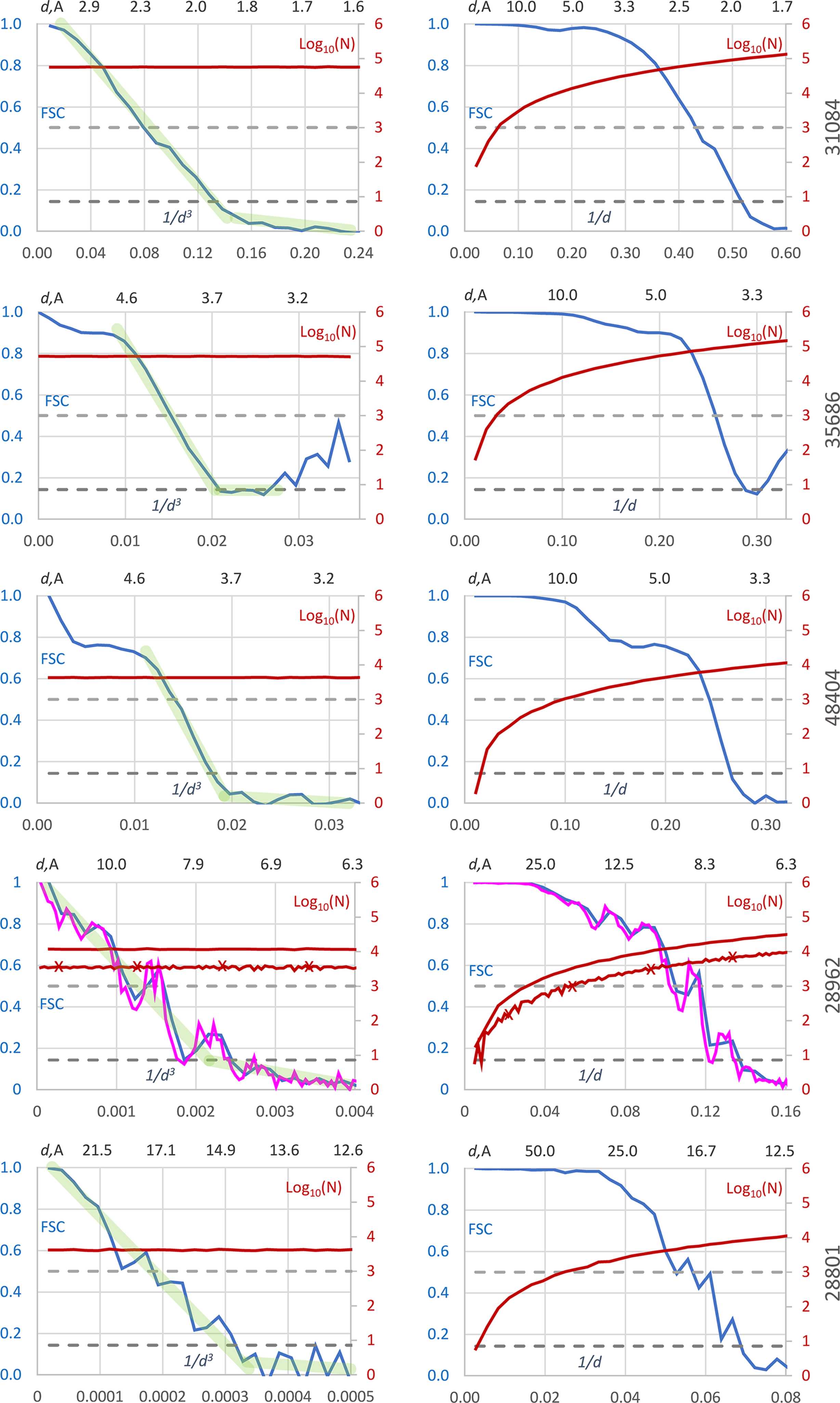

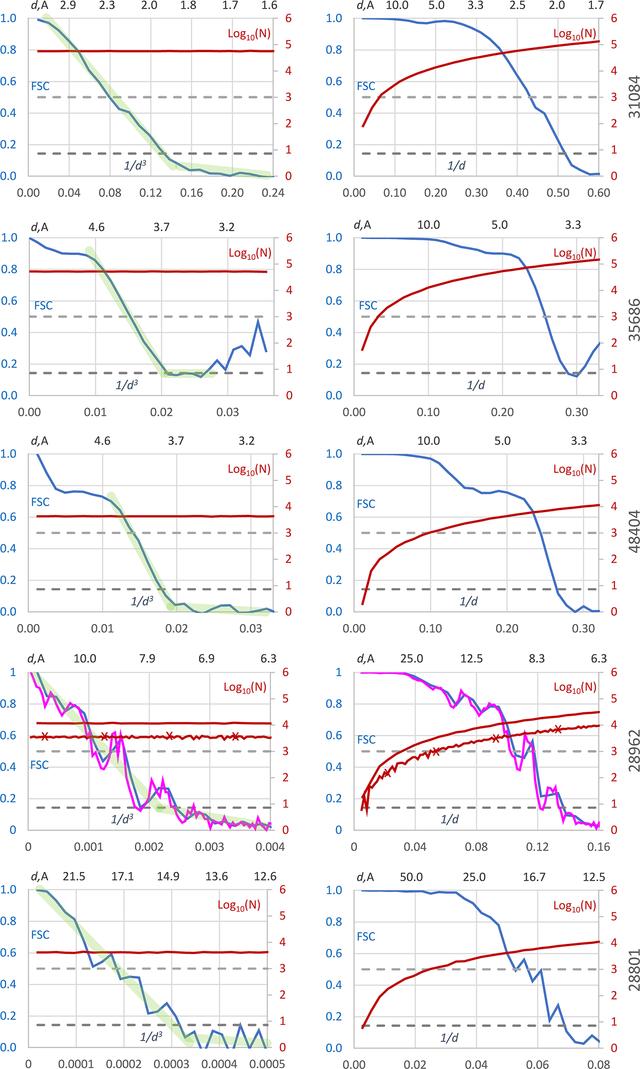

FSC curves for half-maps. FSC curves (in blue) were calculated in resolution shells with boundaries chosen uniformly on the Å−3 (left column) and Å−1 (right column) scales. The upper axis shows the resolution recalculated in Å. All curves are calculated with 30 shells, except EMDB entry EMD-28962, for which the curves in magenta additionally show the results calculated with 100 shells. Red curves represent the log10 of the corresponding number of Fourier coefficients (the curve with markers represents the calculation with 100 shells). Dashed lines indicate FSC values of 0.143 and 0.5. Direct lines in light green indicate two parts of the piecewise linear approximations to the FSC curves calculated on the Å−3 uniform scale. The EMDB code for each data set is shown on the right. |
