![[Figure 3]](has5001fig3mag.jpg)
|
|
Figure 3

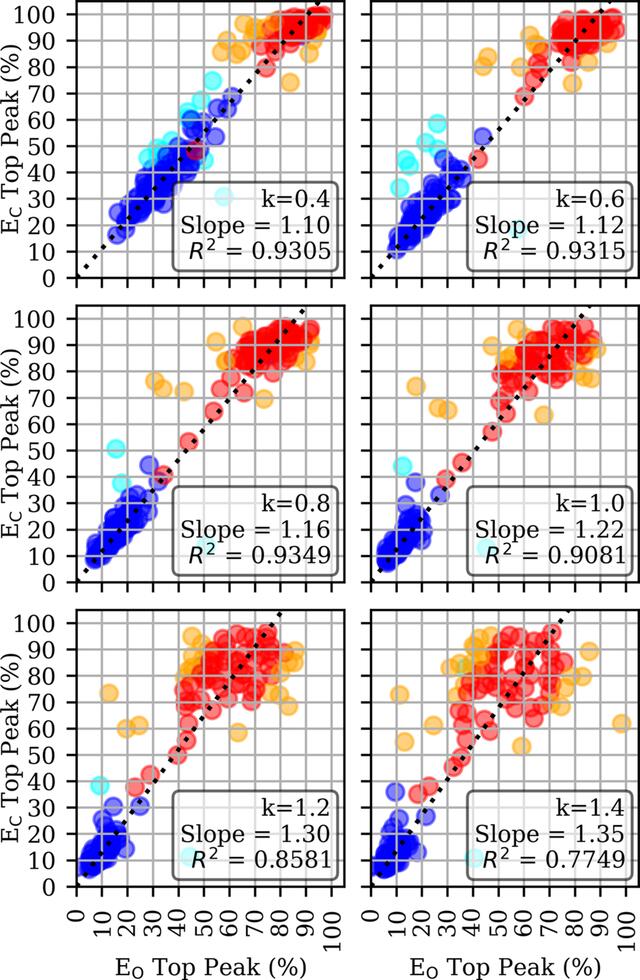

Correlation and clustering analysis of SRF peak prominence across different integration radii. Scatter plots show the relationship between the top SRF peak in calculated versus observed data sets for the `P1-monomer' and `P1-dimer' data sets (blue and red, respectively) across six k values, where k is the scale factor for the molecular radius RM90 (see text). Each subplot (a–f) corresponds to a different k value (k in the range 0.4–1.4 in steps of 0.2). A dashed black line indicates the least-squares regression line constrained through the origin. Outliers (points with residuals >2σ from the forced regression line) are shown in cyan (`P1-monomer') or orange (`P1-dimer'). |
