![[Figure 8]](qe5008fig8mag.jpg)
|
|
Figure 8

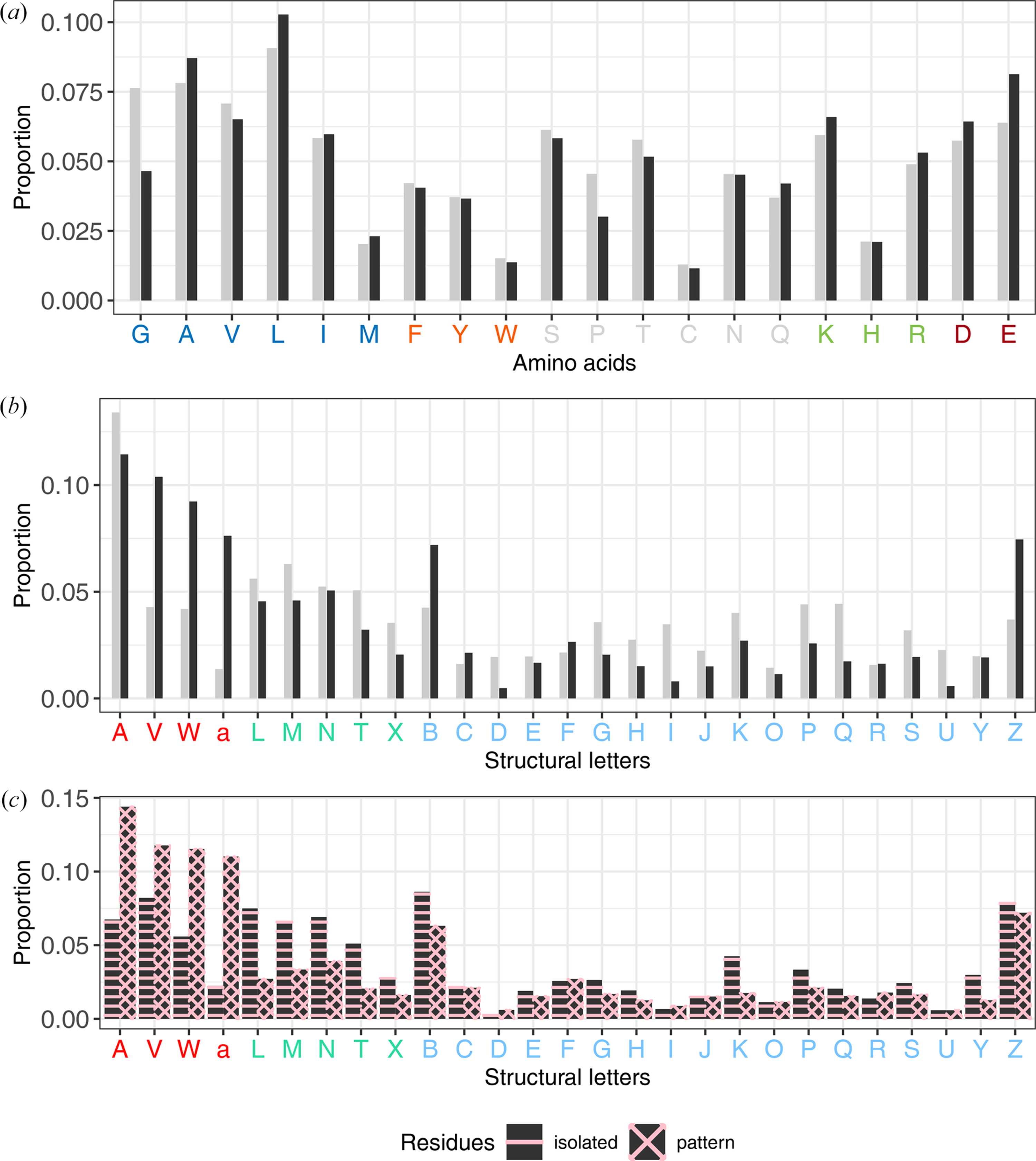

Distribution of the 20 amino acids (a) and the 27 structural letters (b) within the set of RDC and RCC residues. (a) Amino acids are colored according to their properties: nonpolar aliphatic residues in light blue, aromatic residues in orange, polar uncharged residues in light gray, positively charged residues in green and negatively charged residues in dark red. (b) Structural letters are colored according to the secondary structures that they represent: α-helix letters in red, β-strand letters in green and loop letters in blue. Bars are colored according to the residue types: RCC residues in light gray and RDC residues in dark gray. (c) Distribution of the 27 structural letters in isolated RDC residues and in RDC residues forming patterns. |
