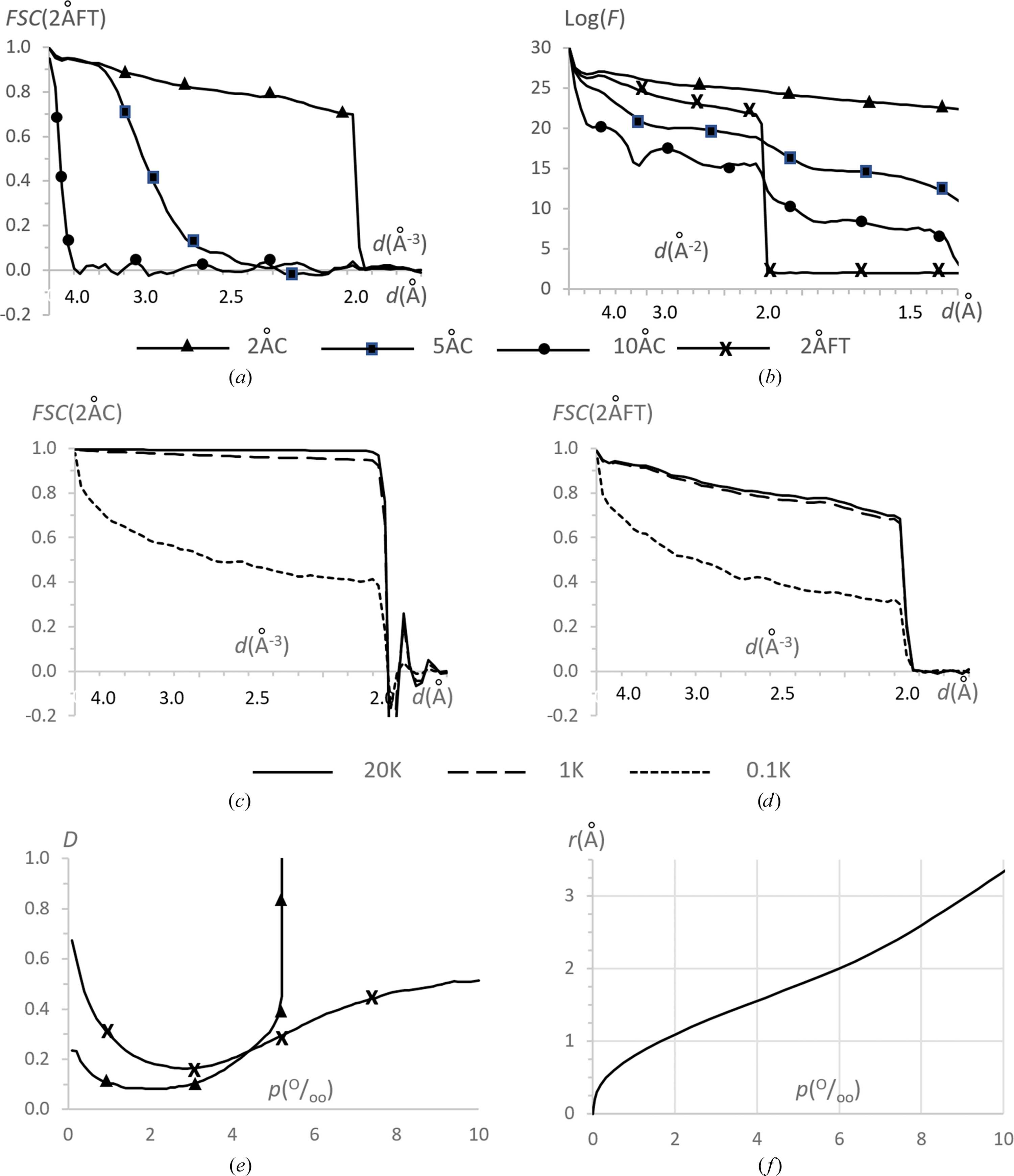

Analysis of the control maps. (a) FSC curve between maps of different resolution calculated by Chimera and the 2 Å resolution map calculated with FT; the resolution scale is uniform in Å−3. (b) Logarithm of the mean intensity of the Fourier coefficients as a function of resolution calculated for the same maps as in (a); the resolution scale is uniform in Å−2. (c) FSC curve between maps reconstructed with different numbers of projections selected randomly and uniformly and the 2 Å resolution map calculated by Chimera; the resolution scale is uniform in Å−3. (d) The same comparison with the 2 Å resolution map calculated by FT. (e) D function between the 20Ku reconstruction and the 2 Å resolution maps calculated by Chimera and by FT. (f) Atomic radius giving the molecular mask of the required volume, expressed in per thousand in both (e) and (f). |
