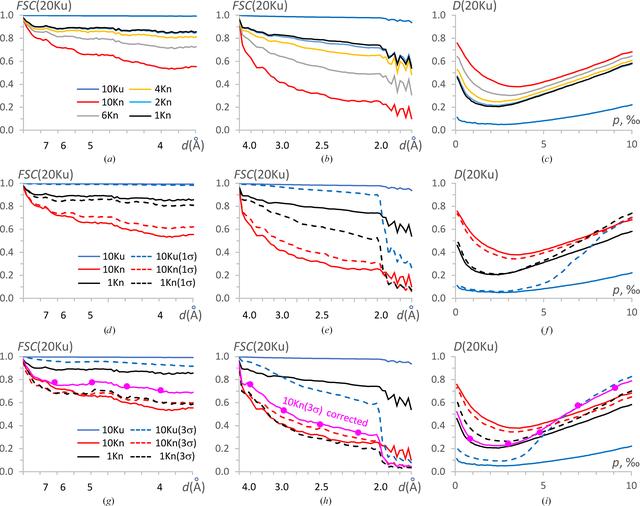

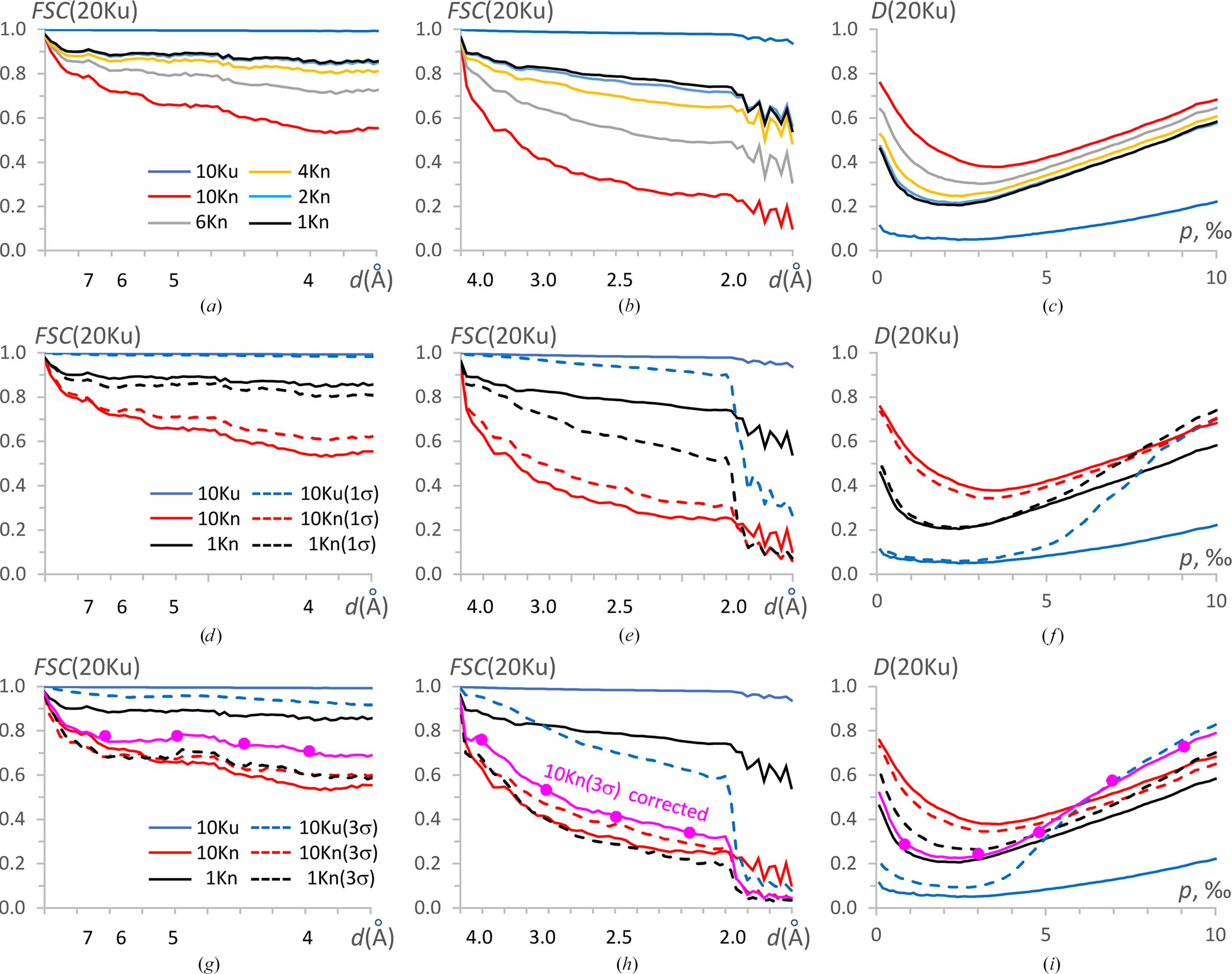

Data analysis for the IF2 simulated data. FSC curves calculated between different maps and the reference map 20Ku in lower (left column) and higher (medium column) resolution intervals; the resolution scale is uniform in Å−3, while values in Å are given for reference. The right column shows the respective D functions as a function of per thousand unit-cell volume. The upper row shows plots for the 10Ku map for the uniformly distributed 10 000 views (blue), the 10Kn map for the non-uniformly distributed 10 000 views (red) and the maps calculated with the reduced non-uniformly distributed sets of projections up to 1000 views (black). The medium row shows, as full lines, the calculation with the error-free sets 10Kn and 1Kn, and, as dashed lines, the reconstructions with the same sets but with 1 r.m.s.d. errors in the projection values; the color code is the same as above. The bottom row is similar to the medium row but for data with 3 r.m.s.d. errors in the projection values. The curves in magenta, with markers, are for the set of projections with ∼5000 severely overrepresented projections removed and replaced by ∼1000 `dummy' projections for the most underrepresented projections. |
