Figure 4

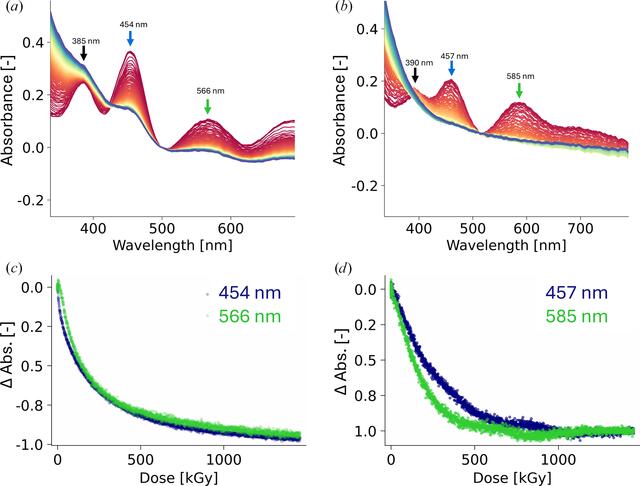

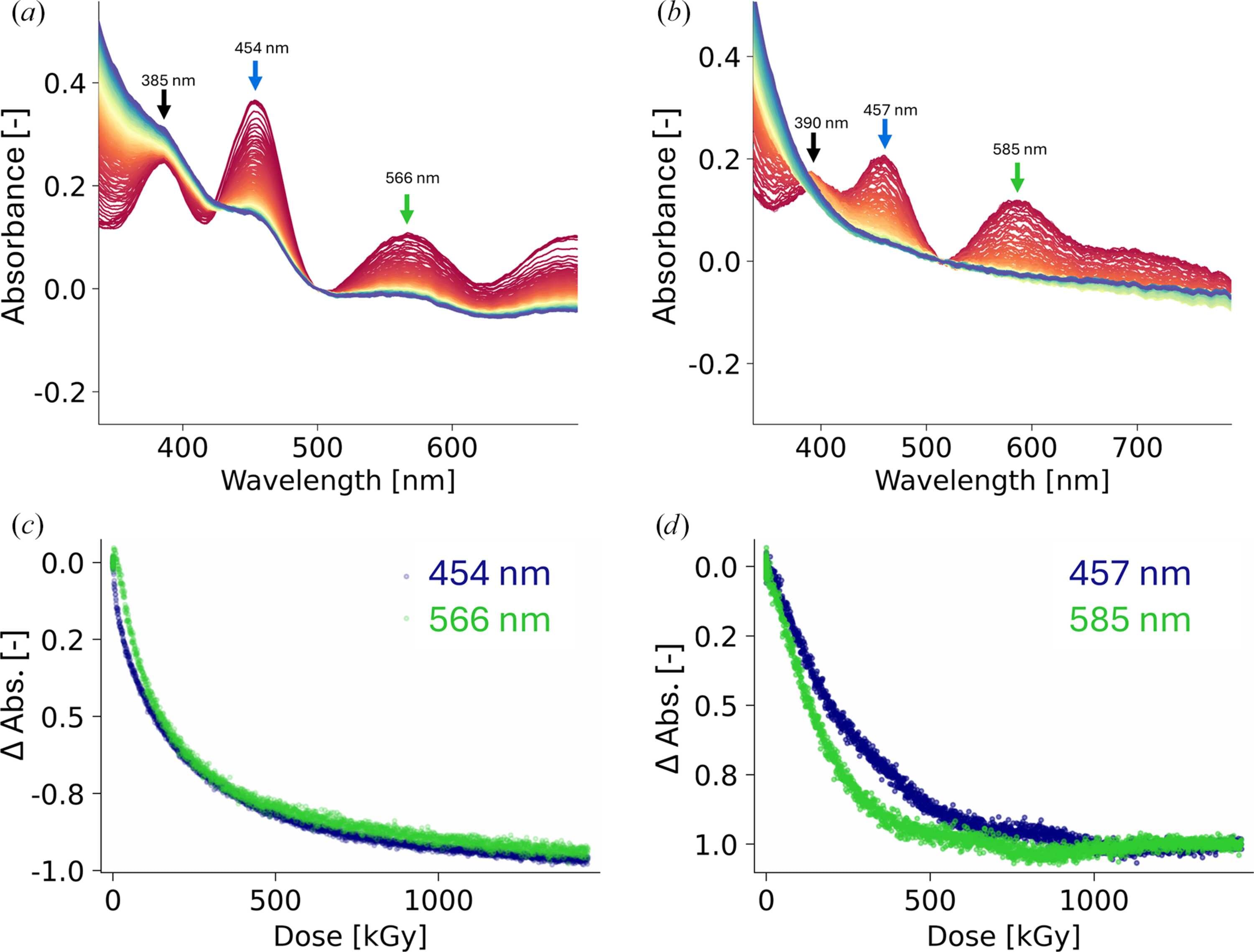

Comparison of the X-ray-induced reduction of T1Cu in AcNIR crystals at CT and RT, monitored by on-line UV–Vis absorption spectroscopy. Series of UV–Vis absorbance spectra recorded during X-ray exposure from 0 (red) to 1.460 MGy (blue) at (a) CT and (b) RT. (c) Decay of absorbance at 454 nm (blue) and 566 nm (green) at CT as a function of dose; the decay dose constants were calculated to be 279 and 271 kGy, respectively. (d) Decay of absorbance at 457 nm (blue) and 585 nm (green) at RT as a function of dose; the decay dose constants were calculated to be 283 and 177 kGy, respectively. |
![[Figure 4]](gm5121fig4.jpg)
