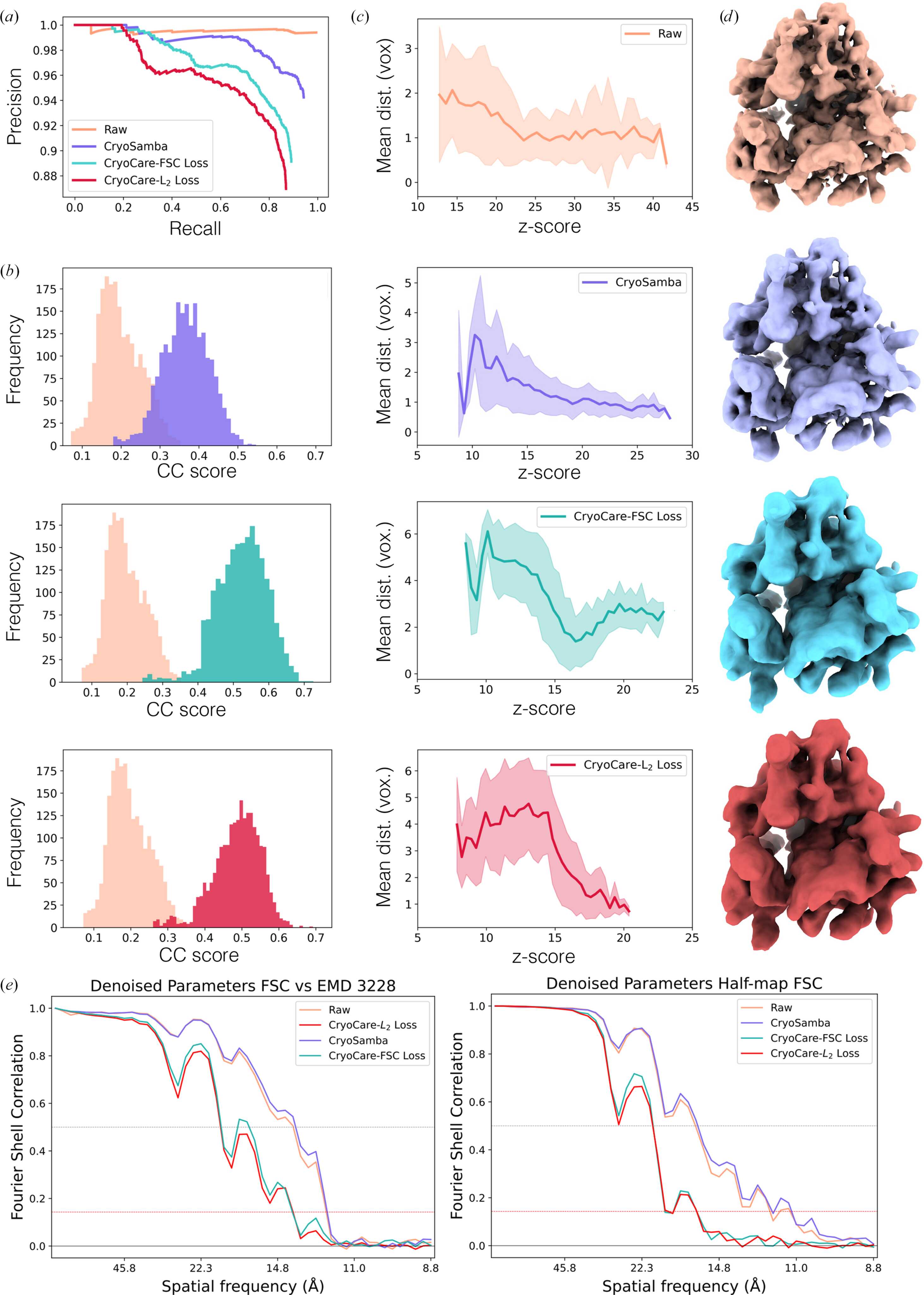

Figure 9
TM and STA results on raw and denoised tomograms. (a) Precision–recall curves for TM positions on denoised tomograms, where the finalized raw STA positions are used as ground truth. (b) Particle-score histograms compared with the noisy volume. (c) Mean distance in pixels between TM peaks and final positions of the raw STA parameters. (d) 3D densities and (e) FSC versus EMDB entry EMD-3228 and half-map FSC curves when using orientation parameters from denoised tomograms to extract and average subtomograms from the raw tomograms.
