![[Figure 1]](gin5002fig1mag.jpg)
|
|

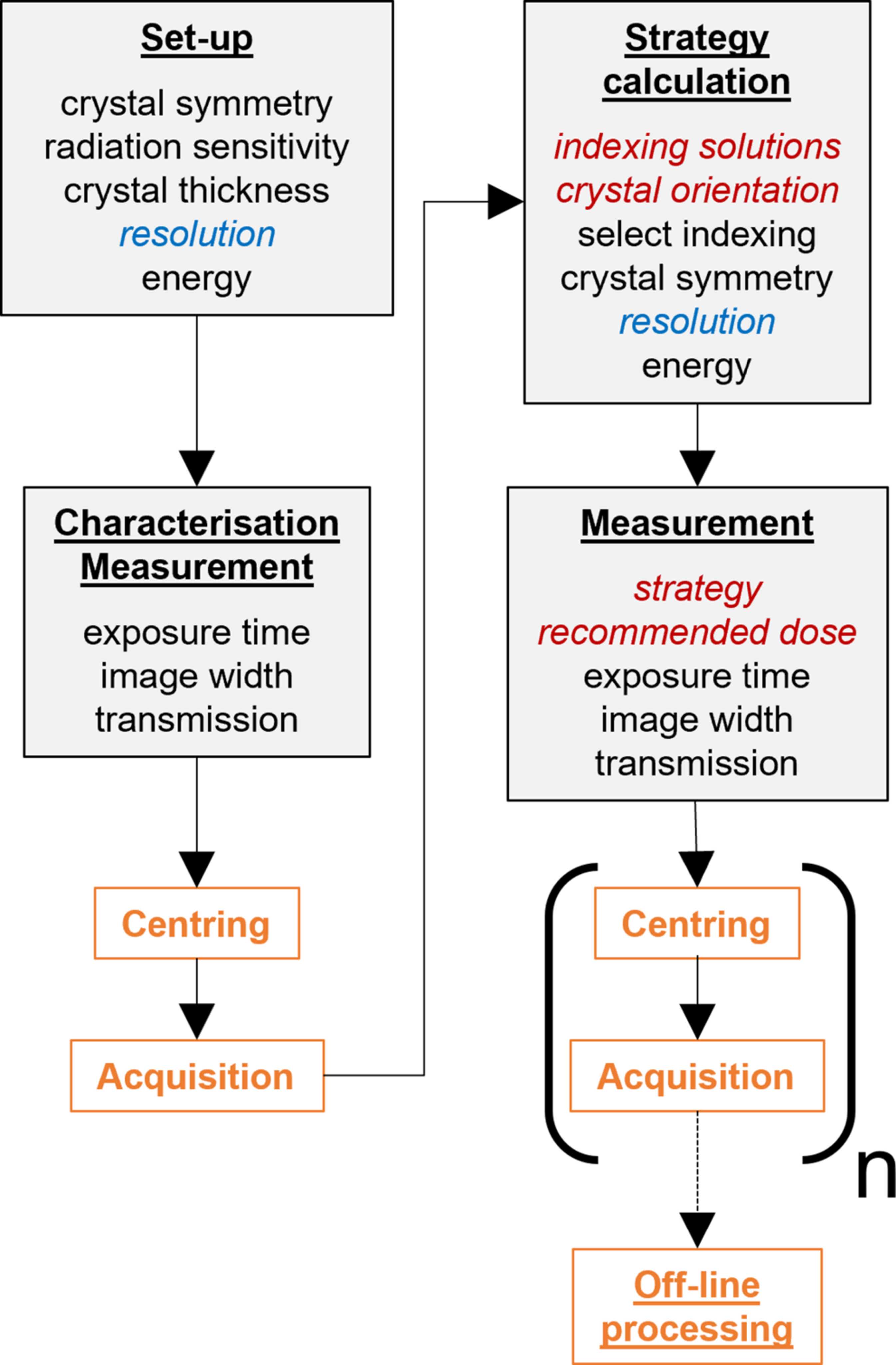

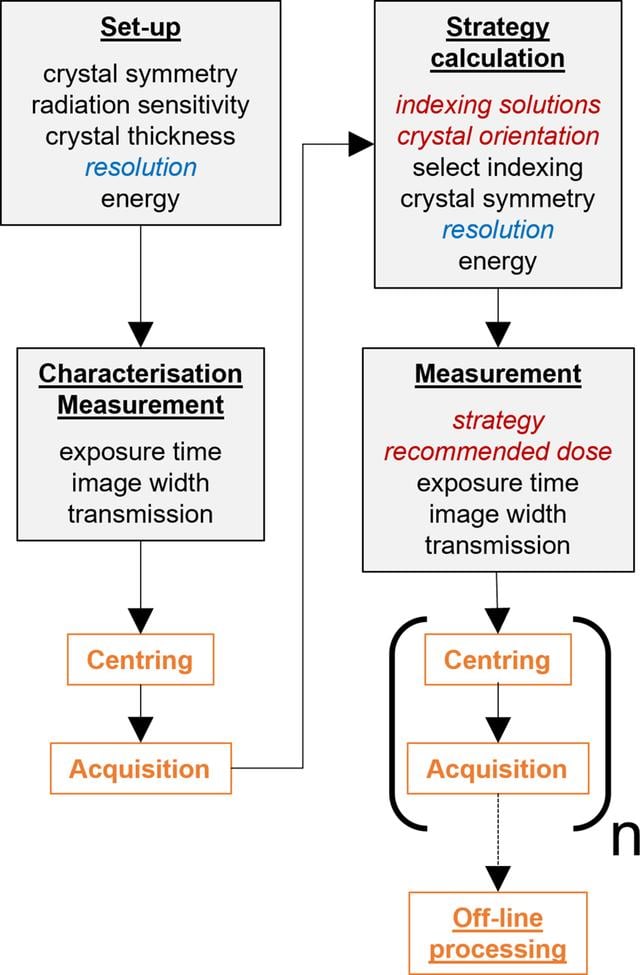

Figure 1
Sequence of the GPhL workflow. Light grey boxes represent workflow steps, showing input parameters; orange boxes are actions outside the workflow software. Input parameters in black have default values from configuration data and can be reset manually from the user interface or from the diffraction plan in automation. Parameters in red italics are calculated from earlier workflow steps. The resolution is the only parameter that cannot be reliably set by configuration and must be set for each sample. In the implementation at MASSIF-1 (Bowler et al., 2016  ), all steps up to the characterization and the calculation of the indexing solutions and crystal orientation are performed before the GPhL workflow is started, and the information is transferred to the workflow, which starts by selecting the indexing solution. |
![[Figure 1]](gin5002fig1.jpg)
