Figure 10

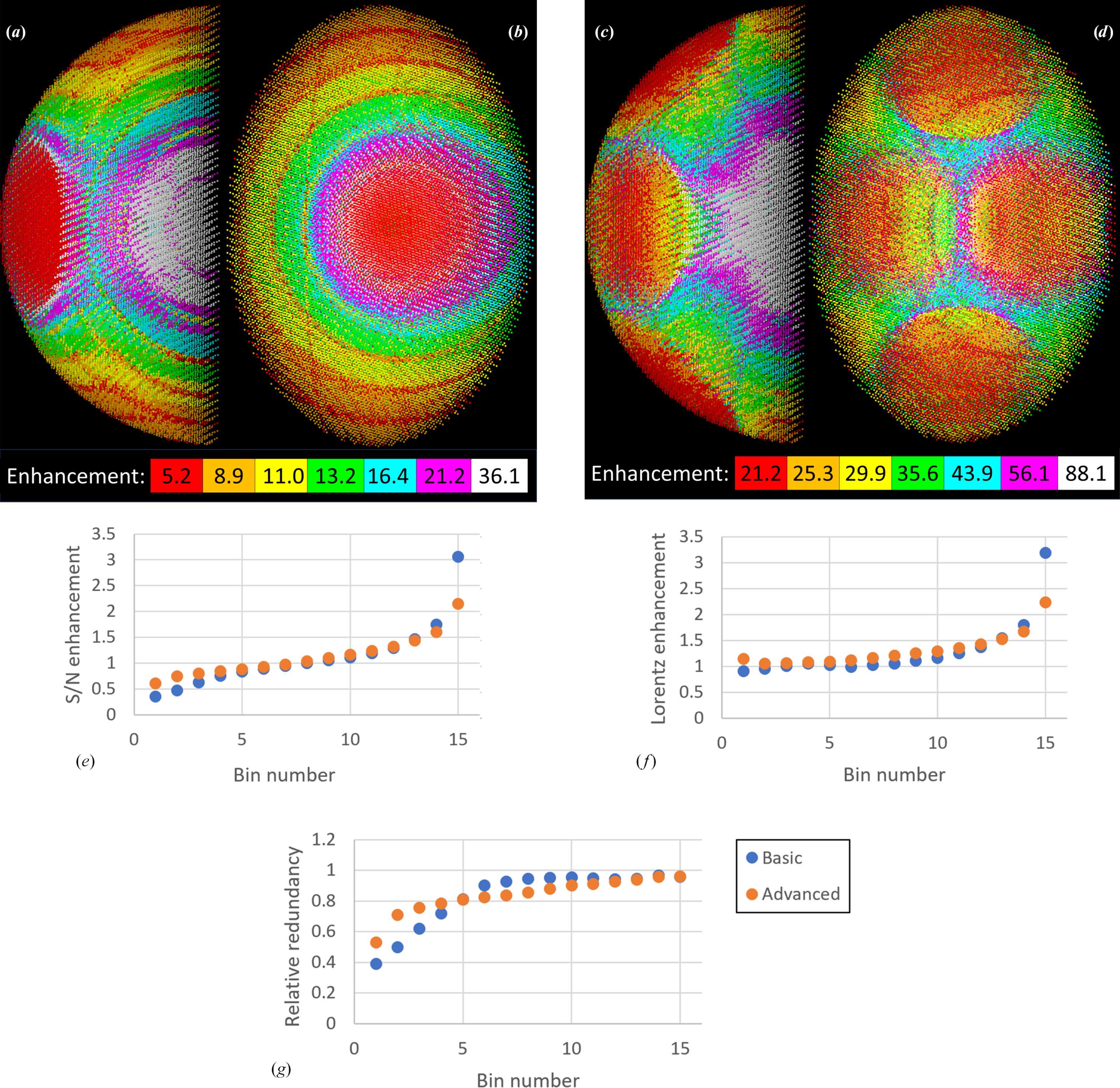

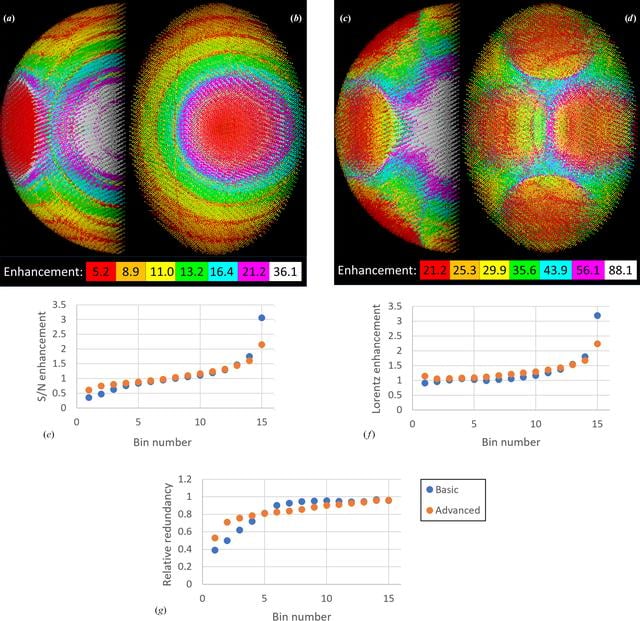

Merged reflection S/N enhancement factors in equi-populated bins for the experiment described in Fig. 9[link]. (a, b) Two views of the enhancement distribution for the basic (single-sweep) experiment. Note that the apparently simple image in (a) arises from an angled plane cutting across a complex three-dimensional pattern; see Fig. 5[link] for comparison. (c, d) Two views of the enhancement bins for the advanced (four-sweep) experiment. Note the more even spread of red and orange points in this experiment, and the narrower spread between the highest and lowest enhancement factors. (e, f, g) Distribution of S/N enhancement factors in the merged reflection file for the basic and advanced strategy, corrected for the effect of resolution. (e) shows the S/N enhancements, (f) the Lorentz-dependent contribution and (g) the redundancy-dependent contribution. The reflections have been sorted and binned by S/N enhancement, and have been adjusted to an equivalent redundancy of 1 for both basic and advanced strategies.
