Figure 14

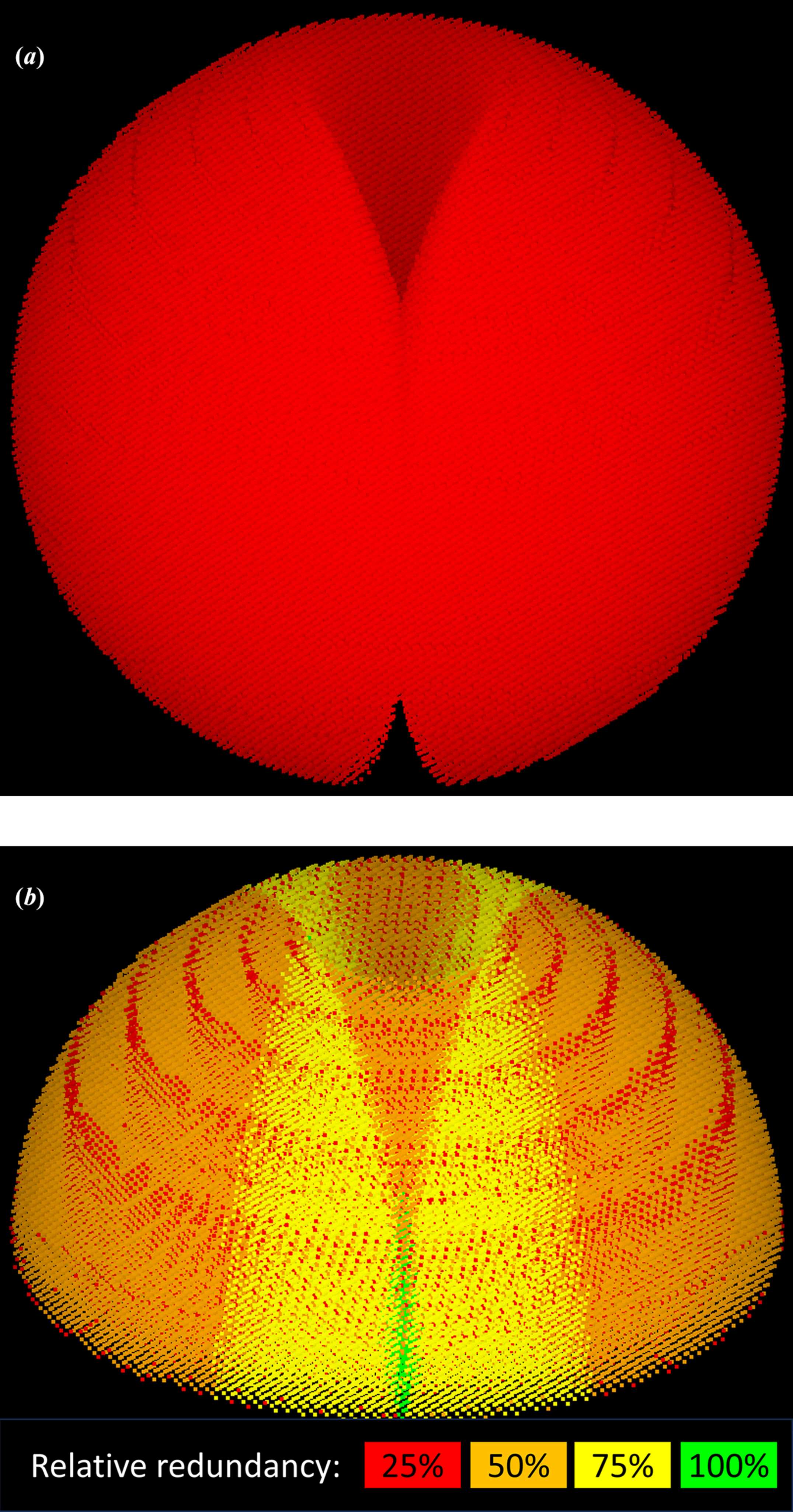

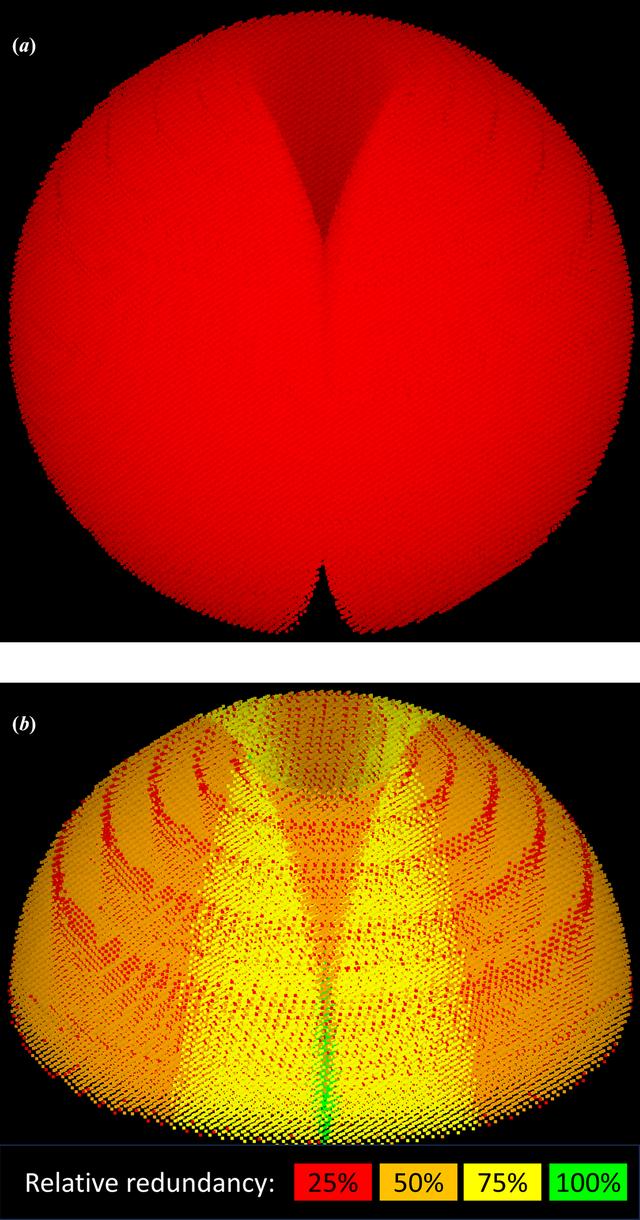

Raw reflections (a) and merged reflections (b) as measured by a sweep of length 180° + 2θmax for a triclinic crystal. Simulation parameters are as for Fig. 4[link]. (b) shows the merged reflections for one hemisphere, colour-coded by non-anomalous redundancy relative to a 360° sweep. The orange triangle between the two yellow wedges are points where only half of the anomalous pair has been measured; red points arise from reflections lost in the detector-module gaps.
