![[Figure 8]](gin5002fig8mag.jpg)
|
|
Figure 8

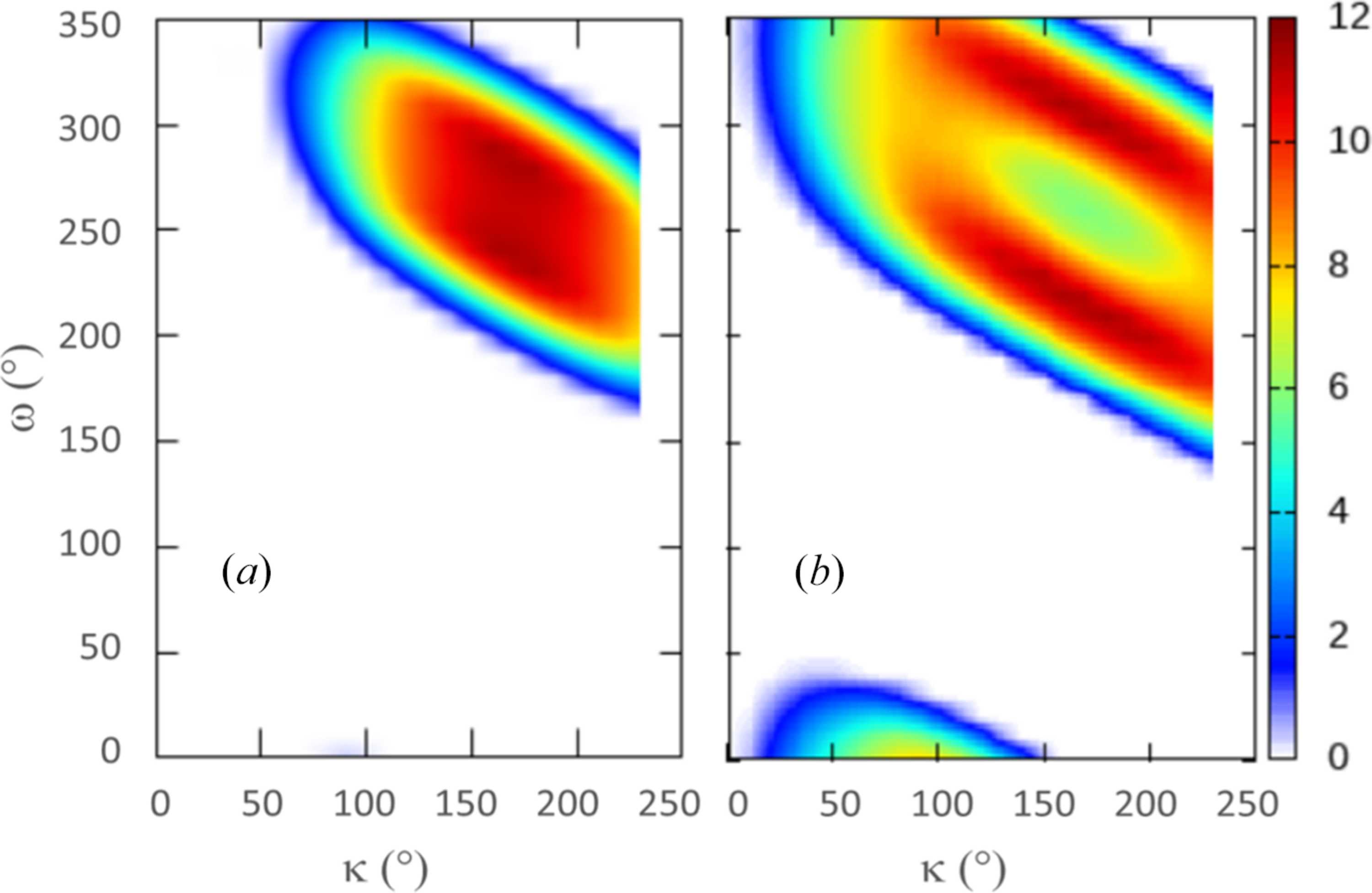

Percentage of shadowing on the detector for different ω and κ. (a) PILATUS3 6M detector at D = 200 mm, equivalent to an EIGER 16M detector at 150 mm. (b) PILATUS3 6M detector at D = 100 mm (excluding minor κ-independent shadows from the κ bracket). The shadow-free ω range is about 225° in (a) and 185° in (b) for a range of κ values from 90° to 240°. The PILATUS3 6M detector is the largest currently available from Dectris, and the detector distance of 100 mm in (b) is too short for realistic operation; the shortest detector distances observed have been in the range 135–150 mm. |
