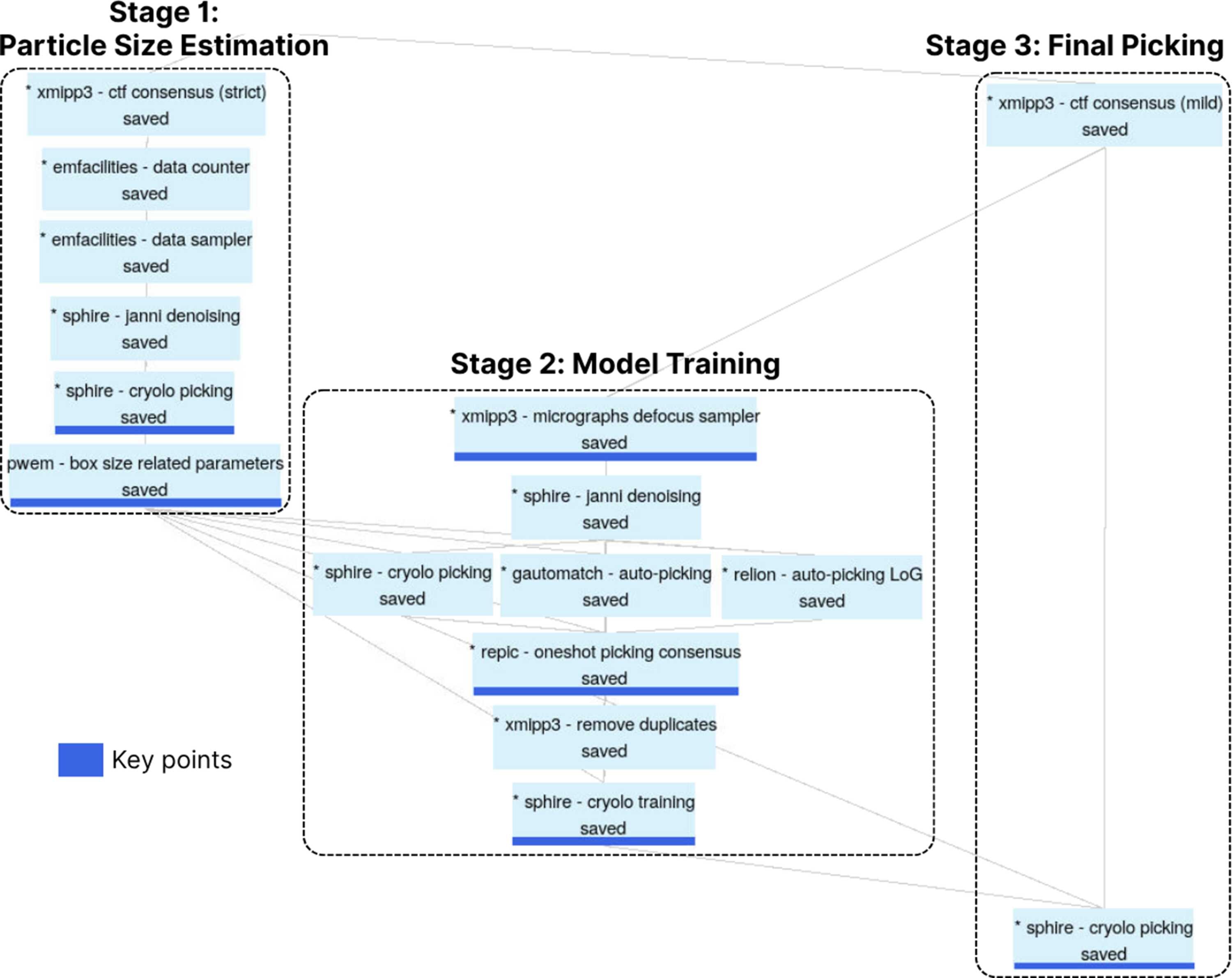

Figure 3
Detailed Scipion workflow diagram for the automated particle-picking strategy. The strategy begins with curated micrographs from early preprocessing and is divided into three stages: Stage 1, automatic particle size estimation; Stage 2, consensus-based ground-truth generation and model training; Stage 3, final picking with the data-specific model. Dark blue labels indicate the key protocols for the automated picking strategy. |
