![[Figure 8]](dez5002fig8mag.jpg)
|
|

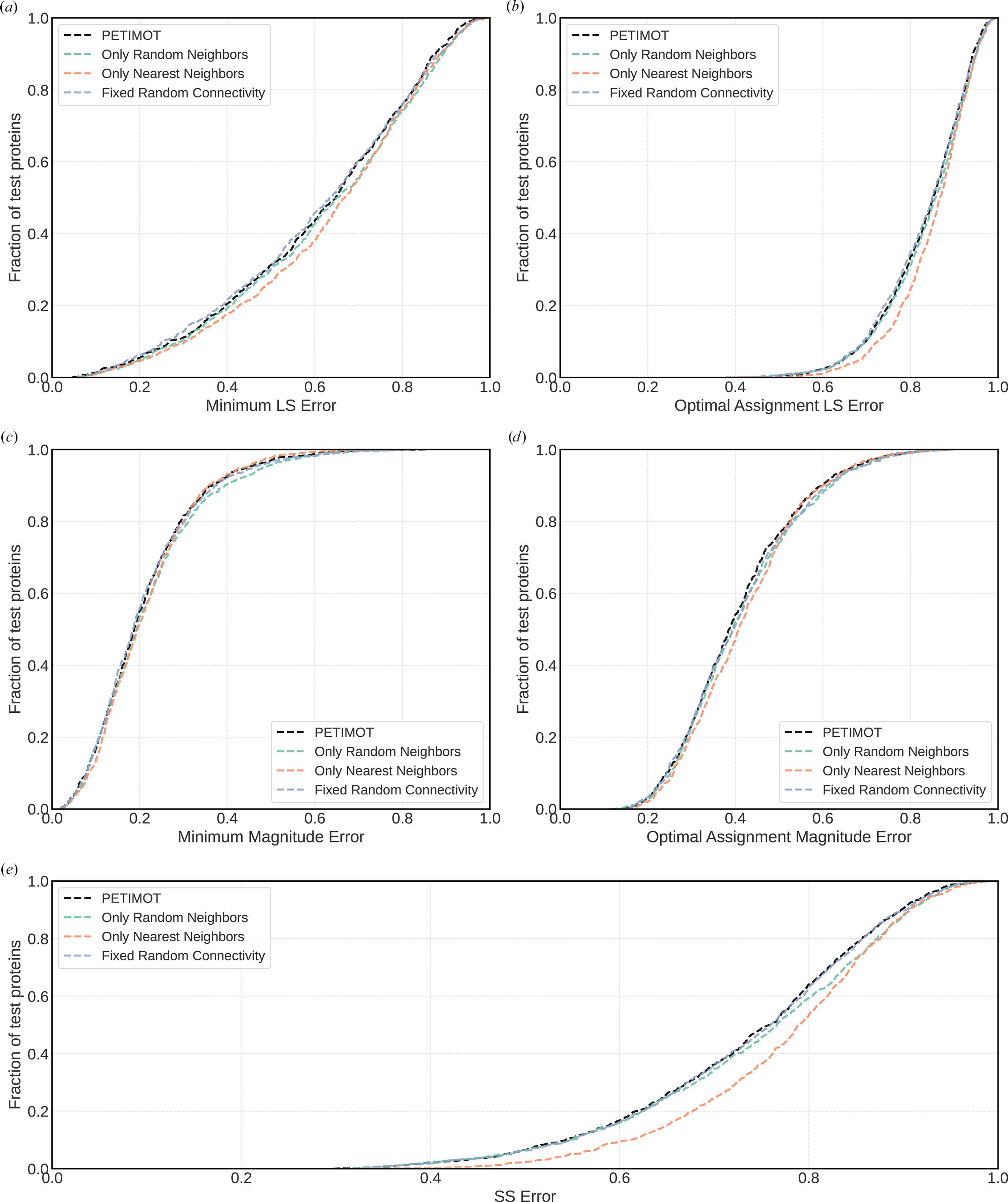

Figure 8
Graph-connectivity ablation. We report cumulative curves for LS error (a, b), magnitude error (c, d) and SS error (e). For each protein, we computed the error either for the best-matching pair of predicted and ground-truth vectors (a, c) or for the best combination of four pairs of predicted and ground-truth vectors (b, d). Only random neighbors: each residue (node) is connected to 15 randomly chosen residues and the connectivity changes after each layer. Only nearest neighbors: each residue (node) is connected to its 15 nearest neighbors in the input 3D structure. Fixed random connectivity: each residue (node) is connected to 15 residues randomly chosen at the beginning. |
![[Figure 8]](dez5002fig8.jpg)
