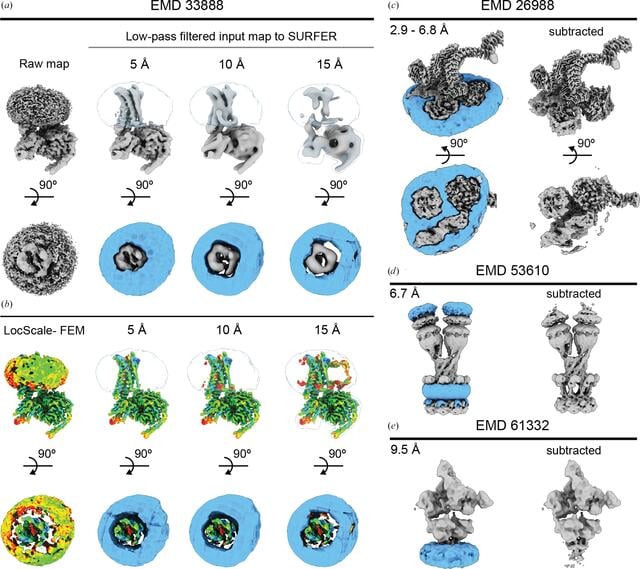

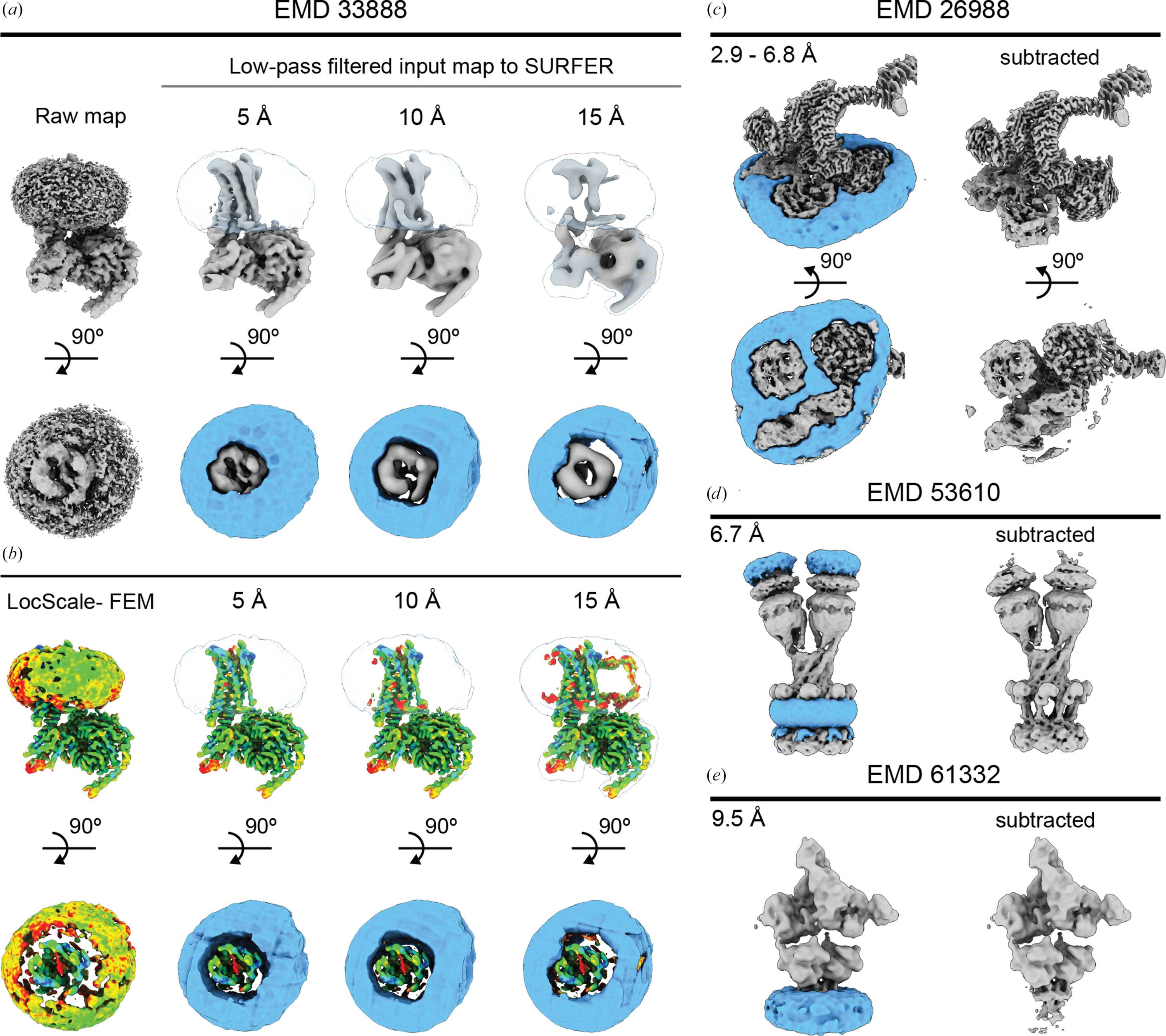

Generalization to mid- and low-resolution maps. (a) Micelle subtraction for relaxin family peptide receptor 4 (EMDB entry EMD-33888) after the application of SURFER to maps low-pass filtered to progressively lower resolution. (b) Micelle subtraction from the LocScale-FEM map of EMDB entry EMD-33888 using segmentation masks generated from the input maps shown in (a). (c, d, e) Representative applications to additional mid- and low-resolution maps: EMDB entries EMD-26988, EMD-53610 and EMD-61332 shown before segmentation and micelle subtraction on the left and after subtraction on the right. The micelle density segmented by SURFER is shown in blue in all panels. |
