Structural basis for a p21-activated kinase 4 and nicotinamide phosphoribosyltransferase dual inhibitor

Park, J.; Hong, H.R.; Han, S.H.; Song, J.; Son, S.-Y.; Choi, S.; Park, S.M.; Lee, W.-K.; Jiko, C.; Kim, J.-H.; Jee, J.-G.; Bang, J.K.; Park, I.Y.; Lee, S.J.

doi:10.1107/S2059798326006145

Acta Crystallographica Section D
Acta Crystallographica
Section D STRUCTURAL BIOLOGY

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

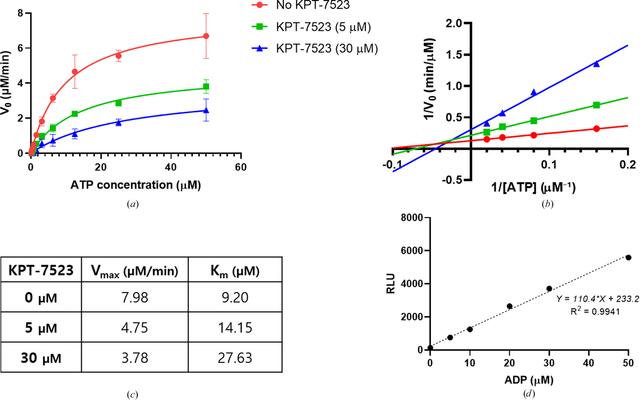

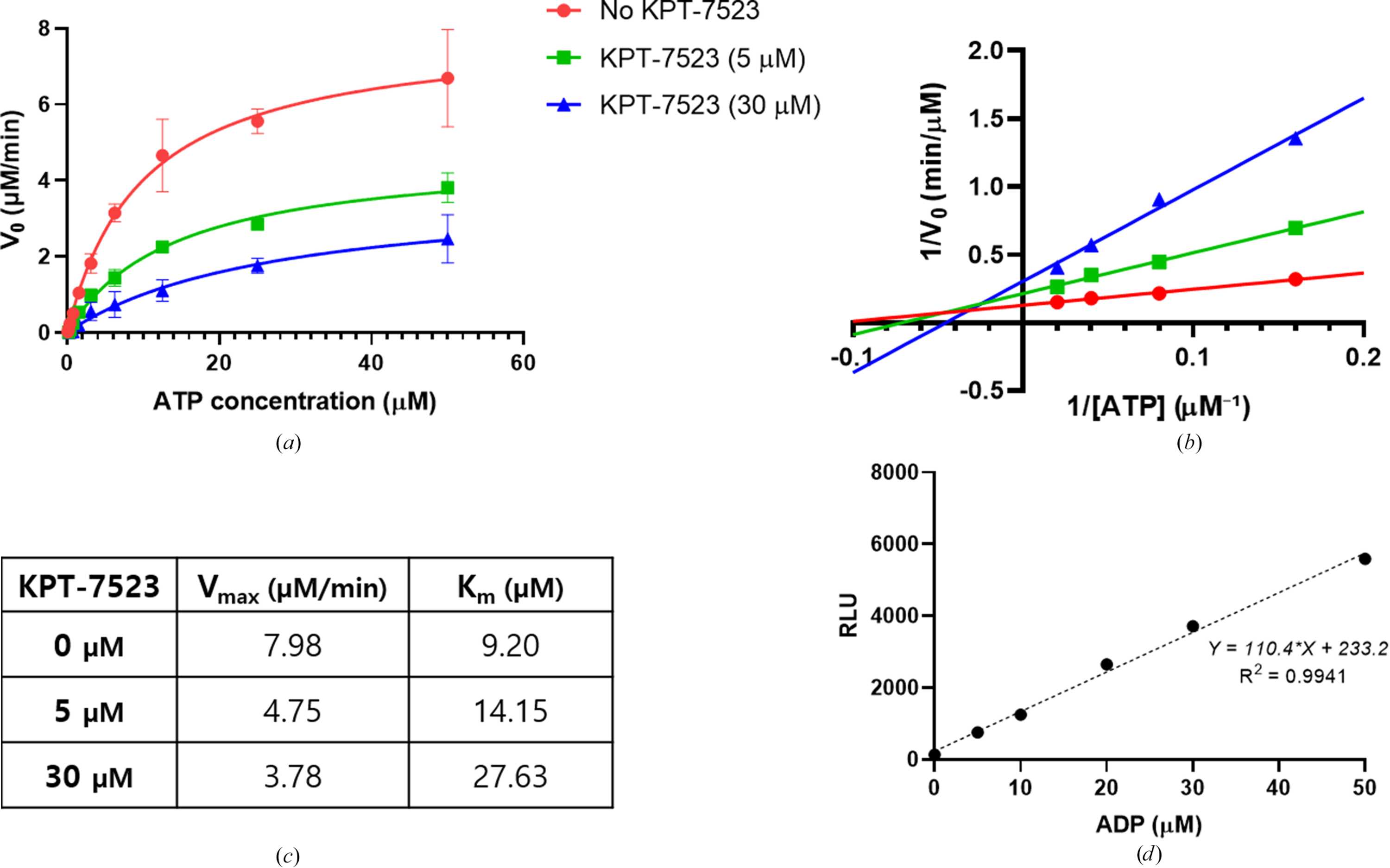

Figure 3
Steady-state kinetic analysis of PAK4 inhibition by KPT-7523. (a) Michaelis–Menten plot of initial PAK4 reaction velocities (V₀) versus ATP concentrations. Data are presented as mean ± SD of replicates. (b) Lineweaver–Burk double-reciprocal plot of the data from (a). (c) Kinetic parameters (V_max and K_m) derived from nonlinear regression analysis of the Michaelis–Menten curves in (a). (d) Standard curve for ADP quantification (R² = 0.9941).

STRUCTURAL
BIOLOGY

ISSN: 2059-7983

Volume 82| Part 8| August 2026|

https://doi.org/10.1107/S2059798326006145
