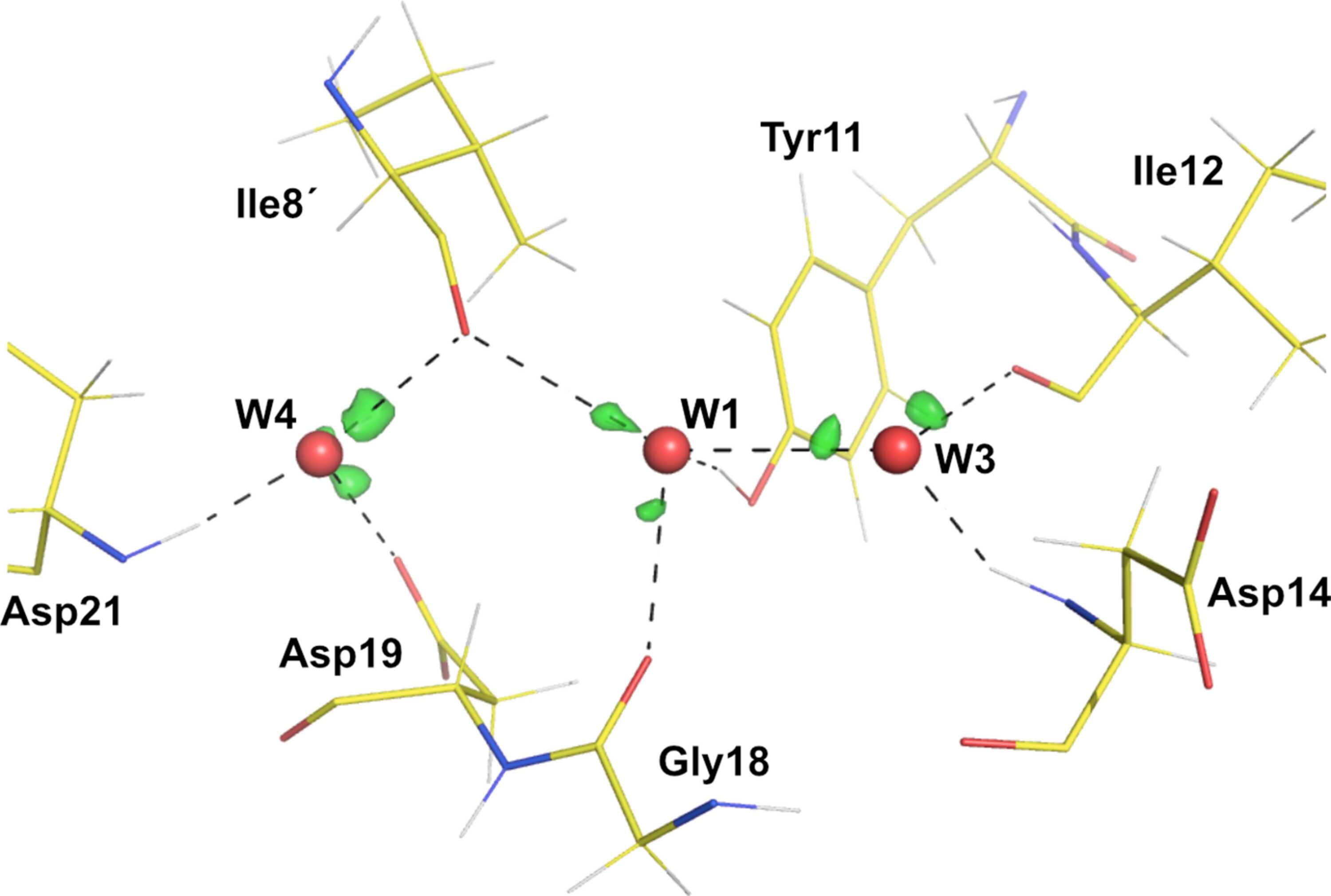

Visualization of water H atoms to complete hydrogen-bonding networks. Shown are water molecules W1, W3 and W4 along with their surrounding mFo − DFc,TAAM map contoured at ±0.8 e Å−3. The immediate hydrogen-bonding environment of these three water molecules is also illustrated and includes Tyr11, Ile12, Asp14, Gly18, Asp19, Asp21 and Ile8 from an adjacent symmetry mate. Note that none of the water molecules were hydrogenated in refinement. |
