Separating the effects of temperature and absorbed X-ray dose on unit-cell volume

Southworth-Davies, R.J.; Murray, J.W.; Carmichael, I.; Rudiño-Piñera, E.; Weik, M.; Garman, E.F.

doi:10.1107/S2059798326008612

Figure 10

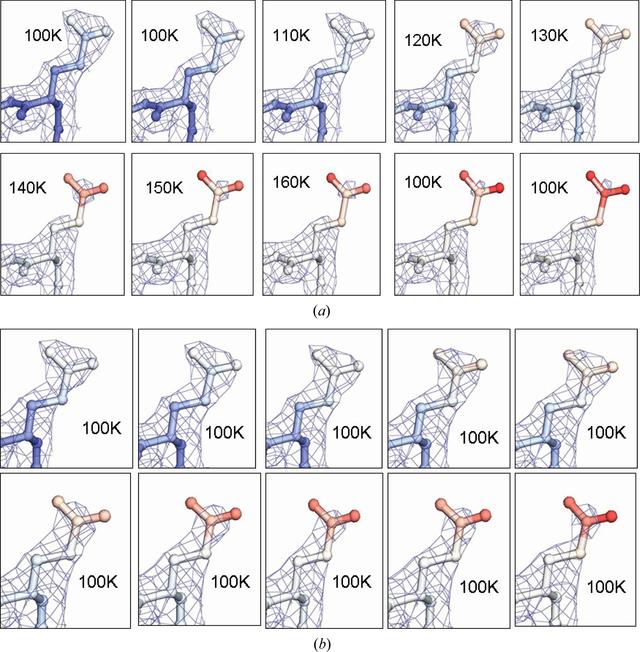

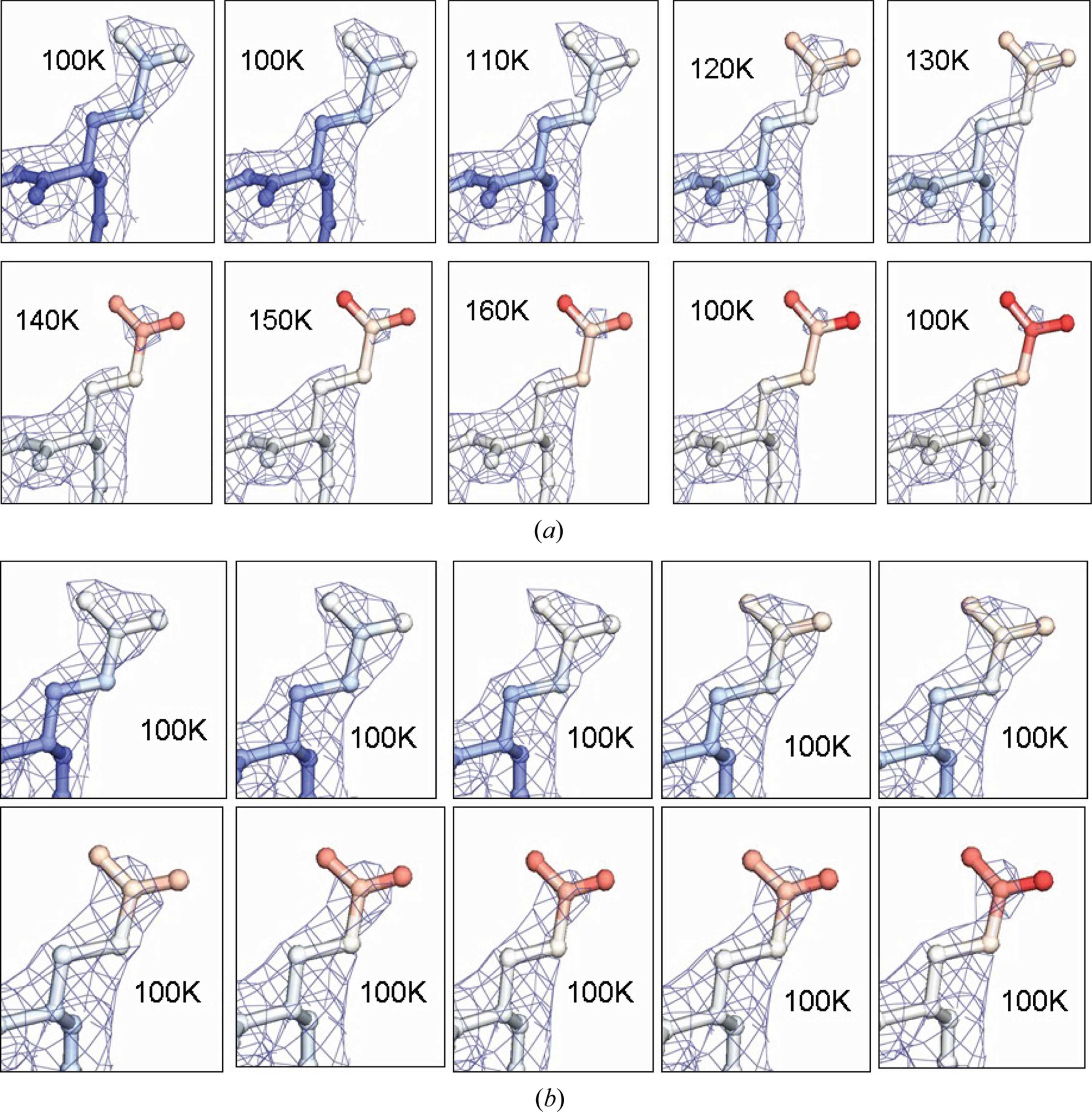

(a) Series of 2F_o − F_c electron-density maps (0.4 e Å⁻³) of Glu53 in the HTS_1 holoferritin temperature series of ten datasets as the temperature is raised from 100 K up to 160 K (DS8, ∼23.2 MGy) and then the change after being taken back down to 100 K (DS9, ∼26.1 MGy; DS10, ∼29.0 MGy). (b) Similar plots for HCS_1 all at 100 K. The atoms are coloured according to their atomic B factors from blue (10 Å²) to red (60 Å²). This figure was produced using AESOP (M. E. M. Noble, unpublished work).
