Figure 2

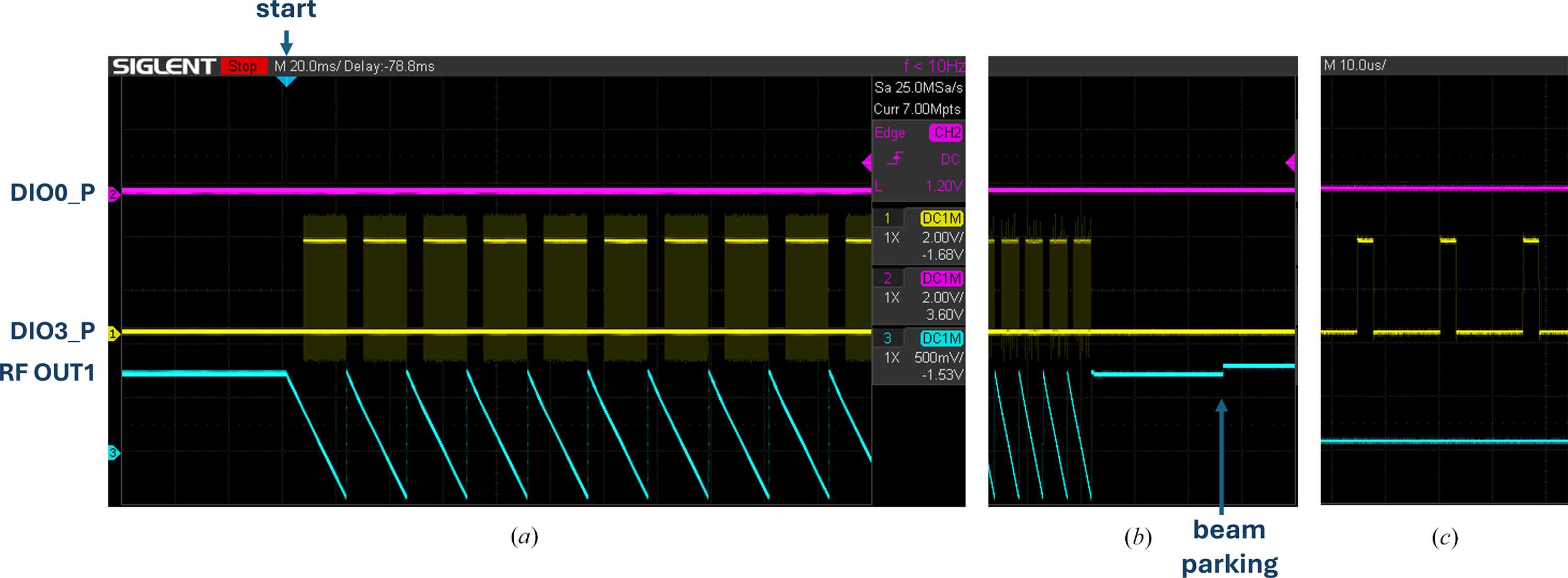

Signals on a scope demonstrate synchronization during a scan. DIO0_P serves internally to start acquisition. DIO3_P is the trigger for the pixelated detector (ARINA) based on 1024 pulses in each line of the scan. RF OUT1 is driving the X scan coil of the microscope. Trace (b) shows the end of the scan in which the signals are synchronized and the beam-parking state is engaged. Trace (c) shows the pattern of single trigger pulses.
