Figure 8

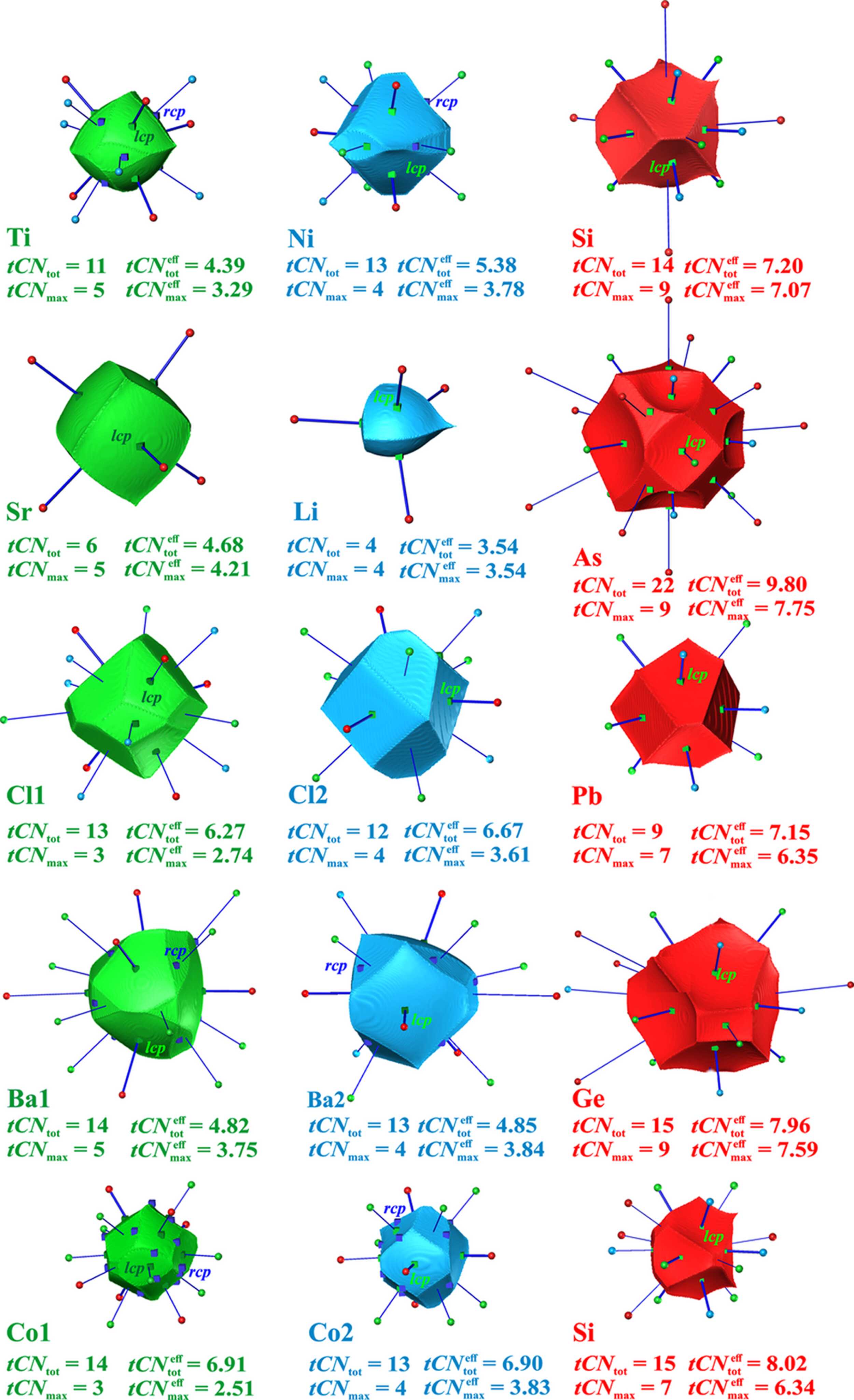

QTAIM basin shapes of TiNiSi-type compounds TiNiSi, SrLiAs, PbCl2, Ba2Ge and Co2Si (from top to bottom). Crystallographically similar species are placed in the same column; spatial orientation is the same for each species type. Cps are shown only if a connection to coordination can be geometrically assumed from the proximity of the intersection point of the IA line with the IA surface. tCN values displayed correspond to the `sc2' type of weighting scheme (Table 3[link]).
