Figure 10

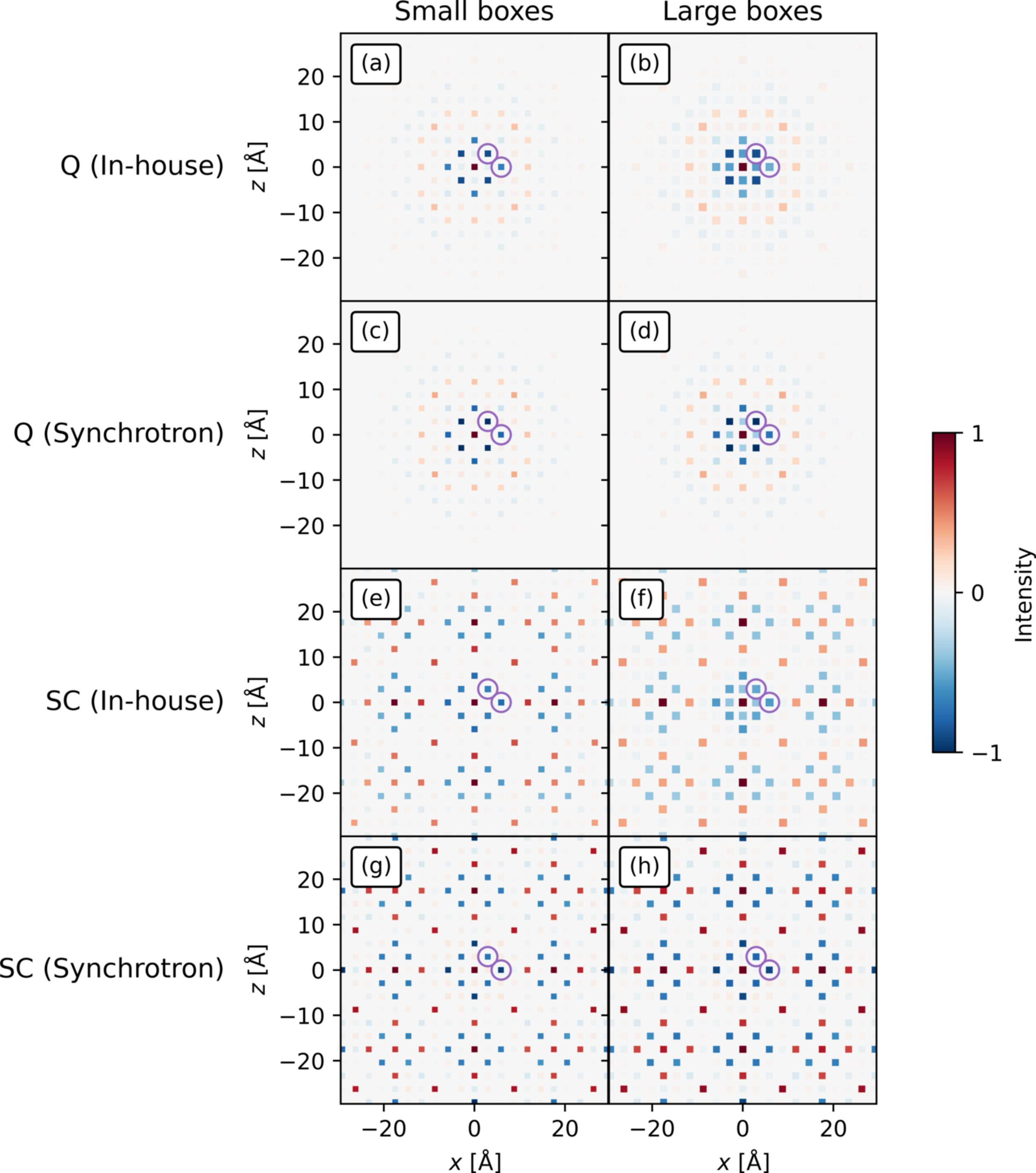

Integrated peaks from the (a), (b) quenched in-house, (c), (d) quenched synchrotron, (e), (f) slowly cooled in-house, and (g), (h) slowly cooled synchrotron samples. The left column shows small boxes which are 7 × 7 × 7 voxels and 11 × 11 × 11 voxels for the in-house and synchrotron measurements, respectively. The right column shows large boxes which are 9 × 9 × 9 voxels and 13 × 13 × 13 voxels for the in-house and synchrotron measurements, respectively. The greatest difference is near the origin in the in-house measurements where the noise is greatest. The small boxes for the synchrotron data were used by Roth et al. (2021BB28) in their analysis. The intensity in each row is on an arbitrary scale. The features used in the main text are marked with purple rings.
