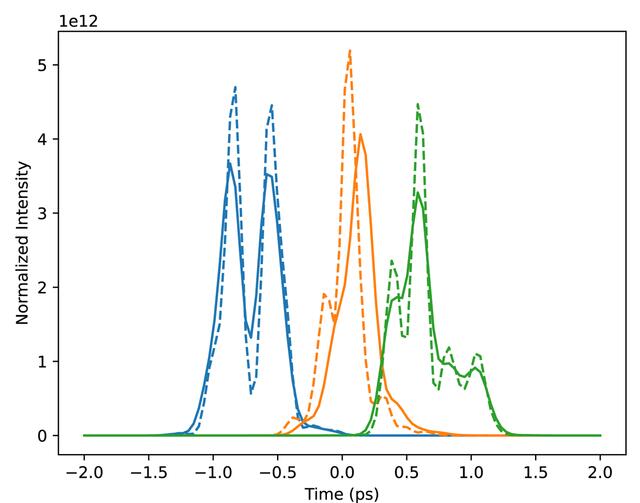

Figure 3
Plotted with solid lines are three samples of the distribution we designed to roughly simulate the temporal profile of a SASE pulse. Plotted with dashed lines are corresponding blurred and randomly shifted versions of each of the pulses that loosely represent a measurement of the pulse with an XTCAV. The average temporal width of the underlying distribution is 500 fs. The scales of the blurring and random shifts are both 50 fs.

Journal logoFOUNDATIONS
ADVANCES
ISSN: 2053-2733
Volume 81| Part 5| September 2025| Pages 371-380
https://doi.org/10.1107/S2053273325004243
