Figure 3

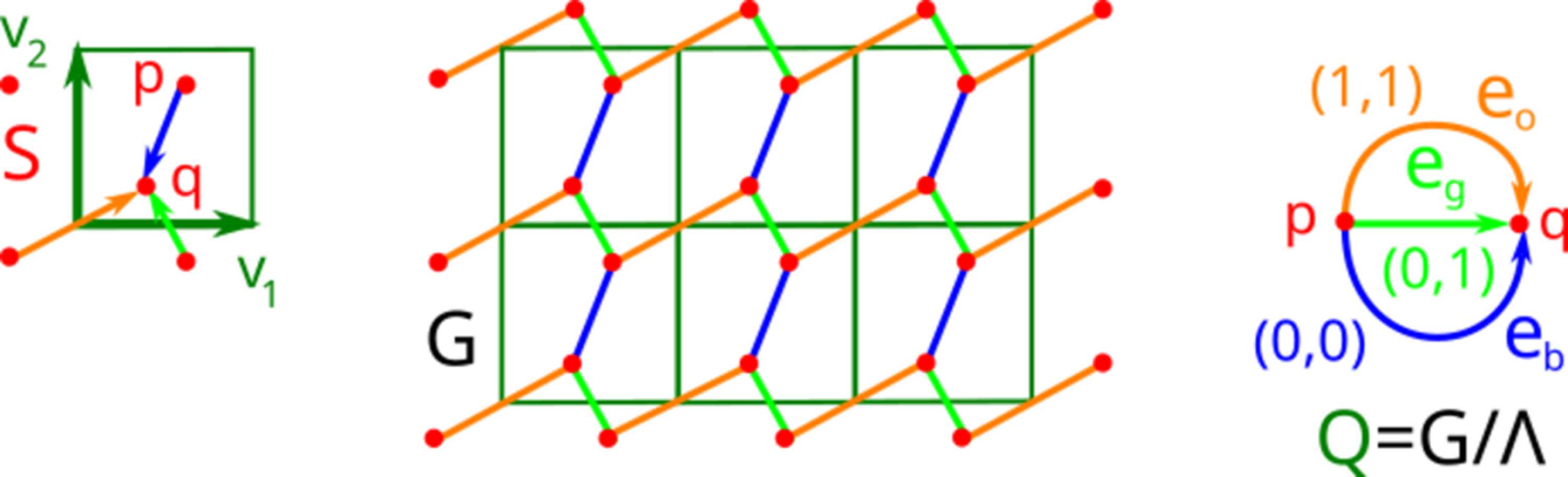

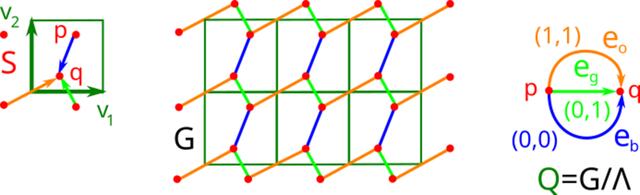

Left: the periodic point set S with the basis vectors [{\bf v}_{1} = (5,0)], [{\bf v}_{2} = (0,5)] and motif points [p = (2,1)], [q = (3,4)]. Middle: the periodic Euclidean graph [G\subset{\bb R}^{2}] with three types of straight-line edges: green, blue, orange of lengths [\sqrt{5},\sqrt{10},\sqrt{20}], respectively. Right: the labelled quotient graph Q has directed edges eg,eb,eo with translational vectors indicating integer shifts of cells (see Definitions 7, 8, 9).
