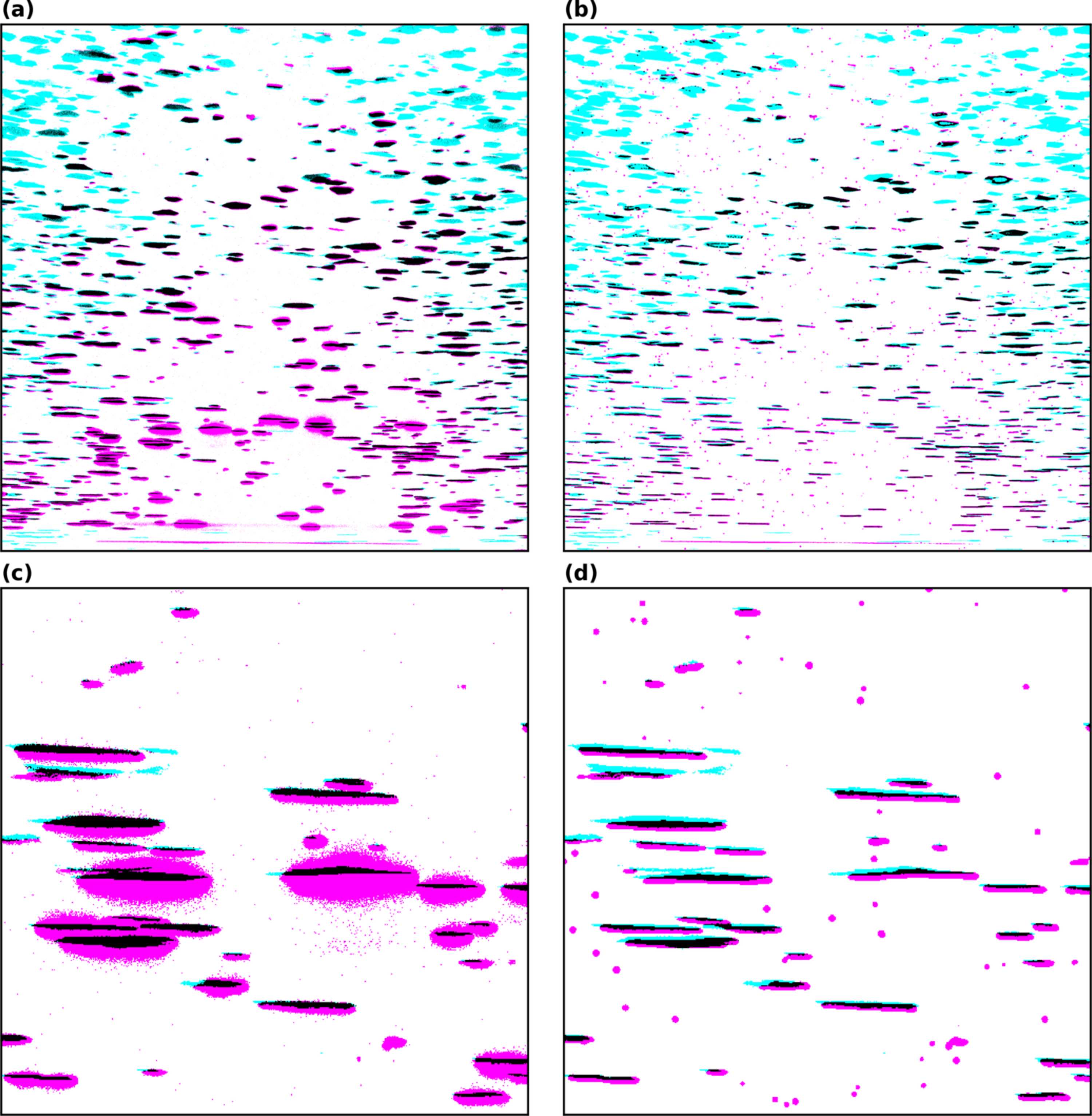

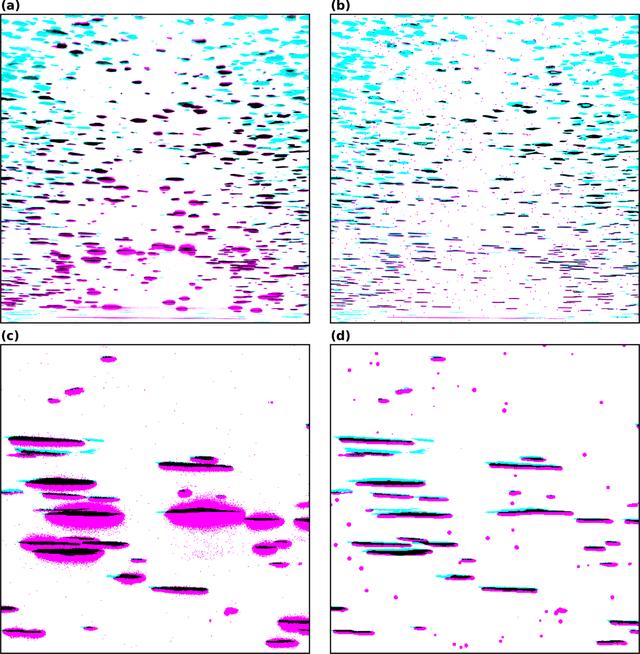

Figure 19
NF_HEDM: plot of diffraction data and simulated data from the microstructure for different image processing techniques. The color scheme is: cyan for pixels with simulated signal only, magenta for pixels with observed signal only, and black for pixels with both simulated and observed signal. (a) Cleaned diffraction image without Laplacian-of-Gaussian (LoG) filter. (b) Cleaned diffraction image with LoG filter. (c) Zoomed-in view of (a). (d) Zoomed-in view of (b).
