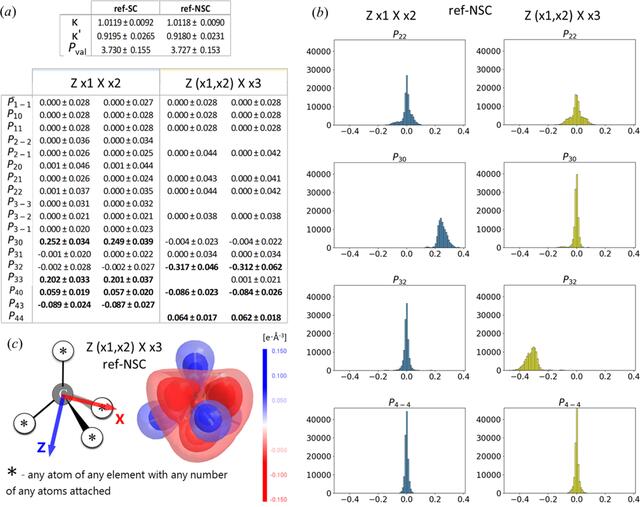

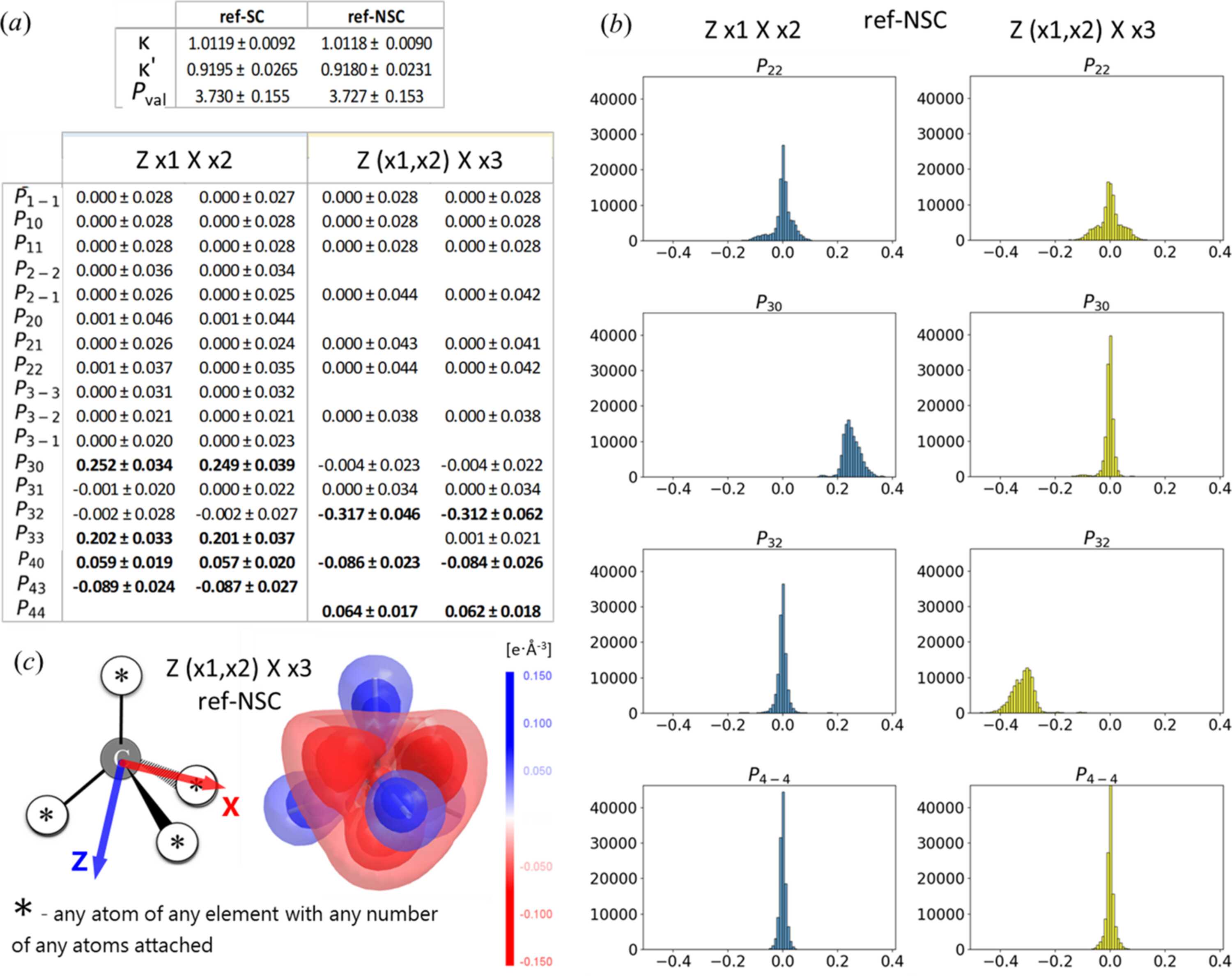

A universal representation of a 4n-C atom: (a) mean ± ssd of multipole model parameters obtained by averaging over all individual LCS orientations of Z x1 X x2 and Z (x1,x2) X x3 LCS types (118128 in each LCS type) for all 9844 4n-C atoms (ref-SC and ref-NSC, only Plm with |mean ± ssd| > 0.019 are shown); (b) histograms for the chosen Plm in Z x1 X x2 and Z (x1,x2) X x3 LCS types (ref-NSC); (c) a deformation electron-density map plotted using Plm averaged over all 118128 individual LCS orientations of the Z (x1,x2) X x3 LCS type (ref-NSC). |
