Figure 11

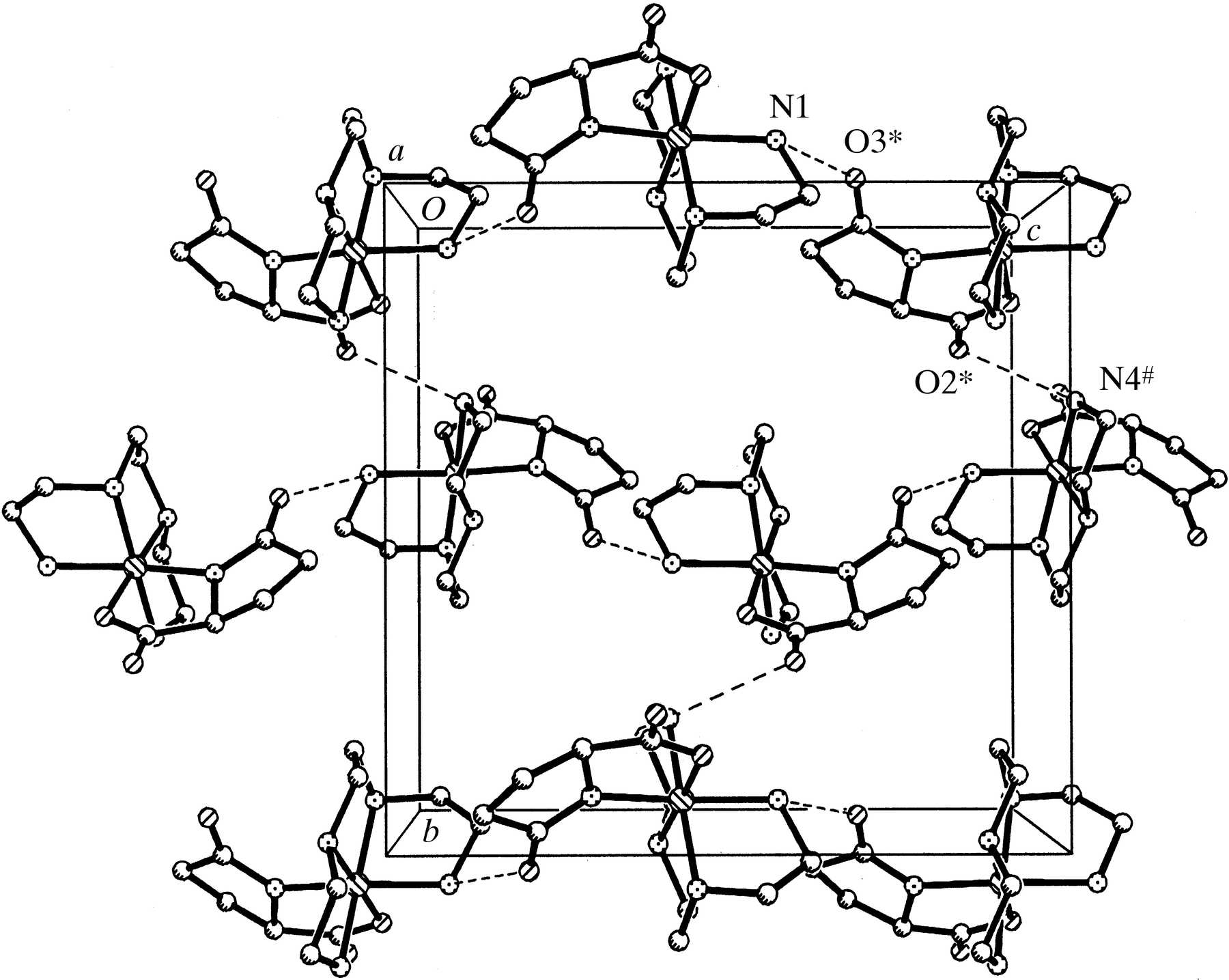

Packing diagram of (3) viewed along the a axis showing the formation of a two-dimensional net. The inter-cation hydrogen bonds are: N1⋯O3* [d(D⋯A) 2.876 (3) Å, ∠(DHA) 139.3°] and N4#⋯O2* [d(D⋯A) 2.873 (3) Å, ∠(DHA) 171.2°]. The * denotes the symmetry operation , while # denotes . |
