Figure 5

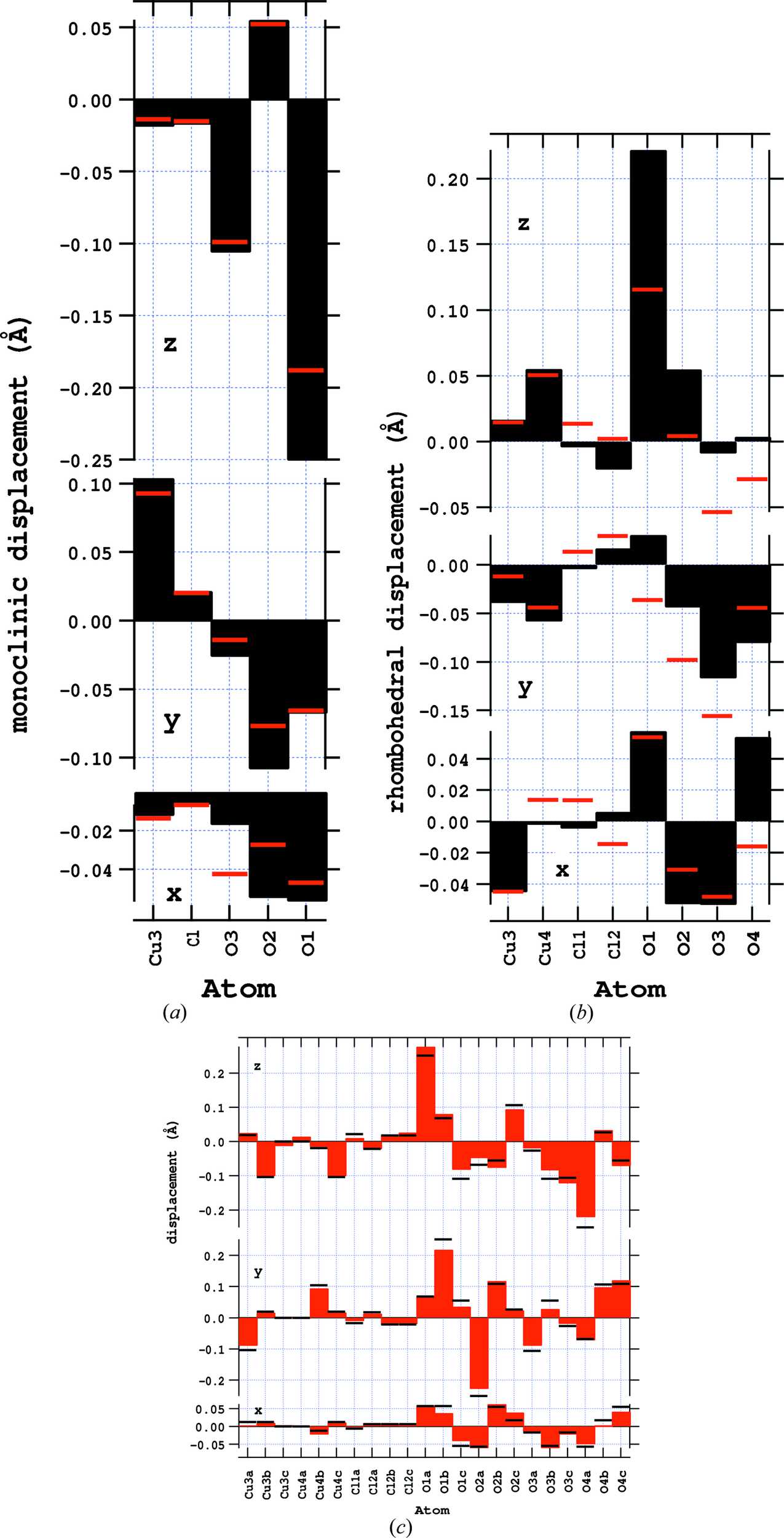

Atomic displacements of sample #1 with respect to the paratacamite substructure: (a) clinoatacamite substructure, this study (bars) and Grice et al. (1996BB9) (red markers); (b) ordered paratacamite, this study (bars) and Fleet (1975BB8) (red markers); (c) triclinic structure (red bars) and corresponding clinoatacamite displacements (black markers).
