Figure 7

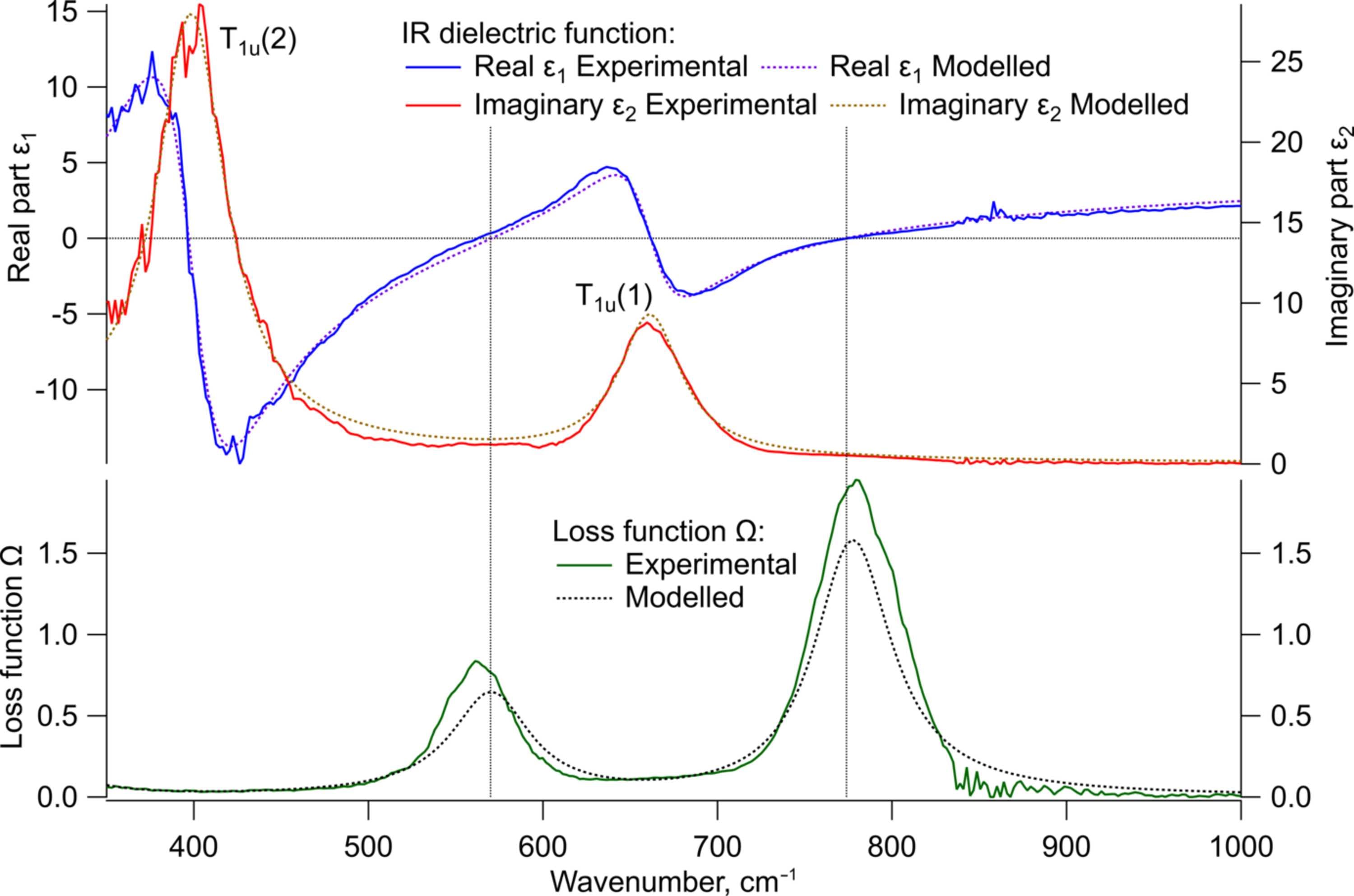

Infrared dielectric function with its real part (ɛ1) in blue, the imaginary part (ɛ2) in red, and the loss function based on equation (2[link]) in green compared to the corresponding models in dotted lines. A horizontal line at zero in and two vertical (dotted) lines are added to show the positions of the second zeros in the real part which correspond to the maximum in the loss function.
