Figure 9

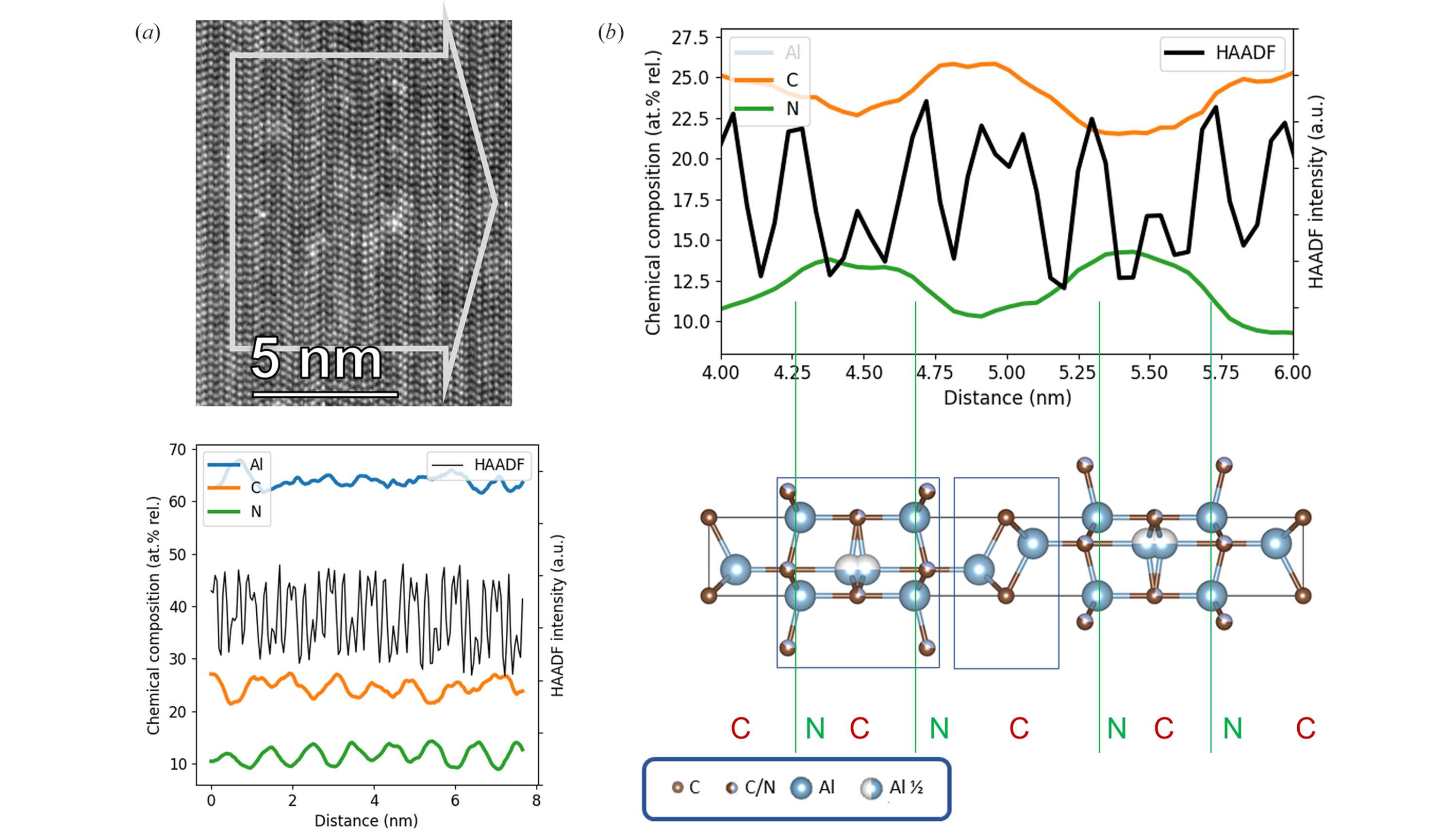

(a) (top) STEM HAADF survey image of the EDS mapped region, bottom, the corresponding integrated profiles of the chemical composition showing repetitive patterns for Al and N signals. (b) (top) Cropped integrated profiles to compare it to our atomic model as presented in Fig. 4[link]. EDS measured in one single scan; the signal is integrated over a width of 10 nm as indicated by the gray arrow on the HAADF survey image.
