Figure 4

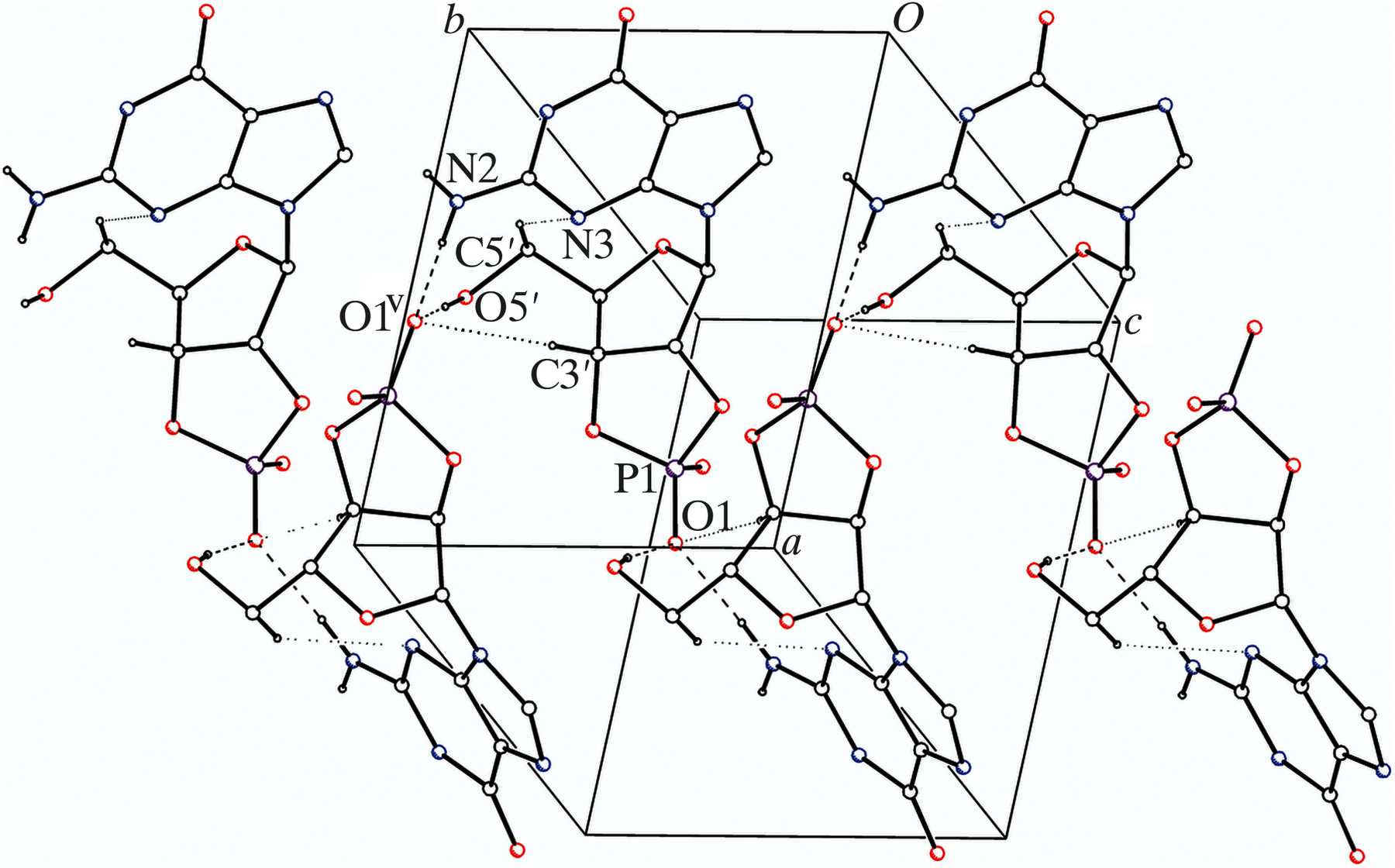

The arrangement of the 2′,3′-cGMP− anions in (II) within the helical chain formed by adjacent 21-related anions joined to one another by O—H⋯O, N—H⋯O (dashed lines) and C—H⋯N (dotted lines) interactions. H atoms not involved in these contacts are not shown. The symmetry code is as given in Table 4. |
