![[Figure 4]](gd3101fig4mag.jpg)
|
|
Figure 4

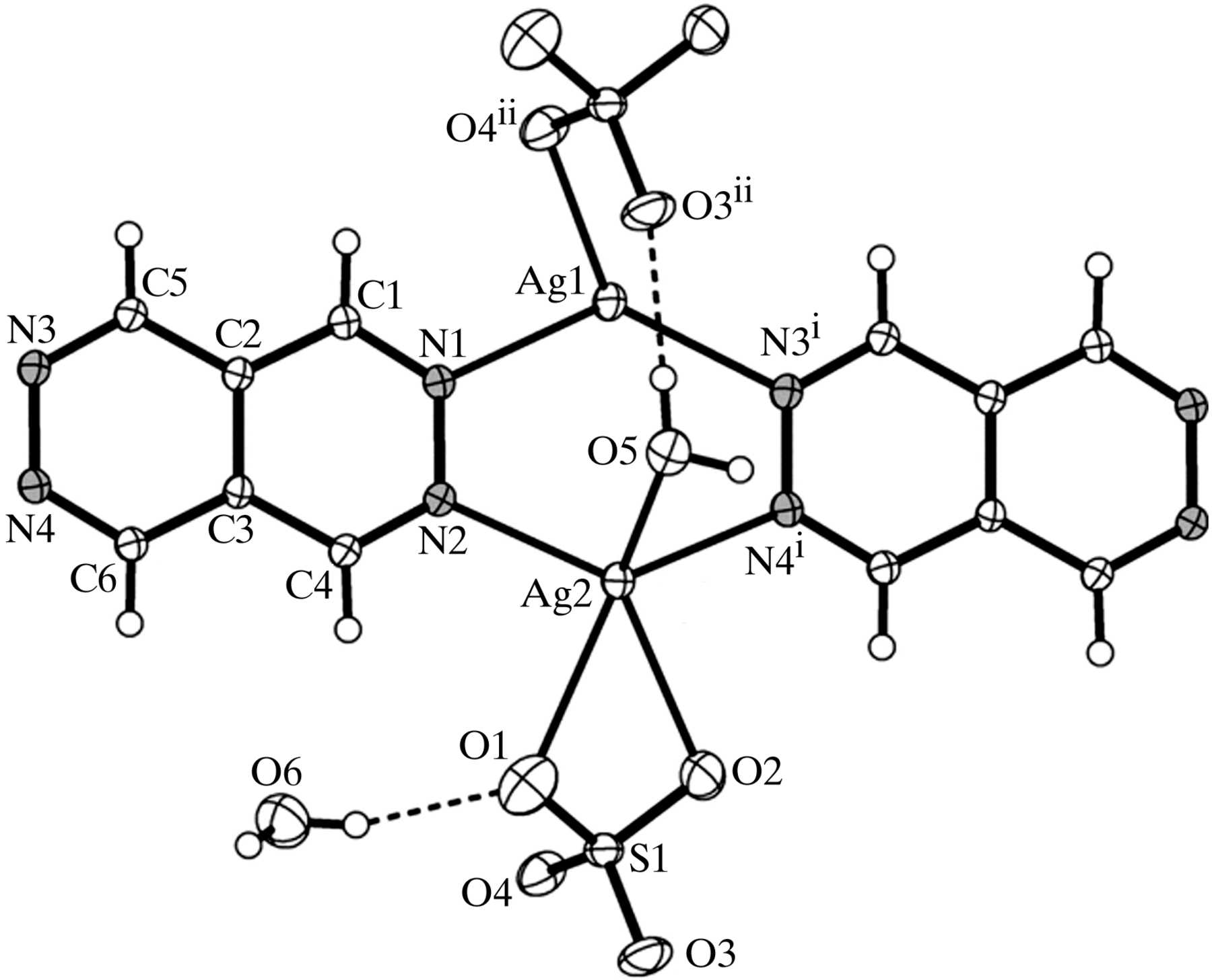

The structure of (II) ![[link]](../../../../../../logos/arrows/c_arr.gif) , showing the atom-labelling scheme. Displacement ellipsoids are drawn at the 40% probability level and H atoms are shown as small spheres of arbitrary radii. Dashed lines indicate hydrogen bonds. [Symmetry codes: (i) x, y, 1 + z; (ii) x, y − 1, z.] |
![[Figure 4]](gd3101fig4.jpg)
