Figure 10

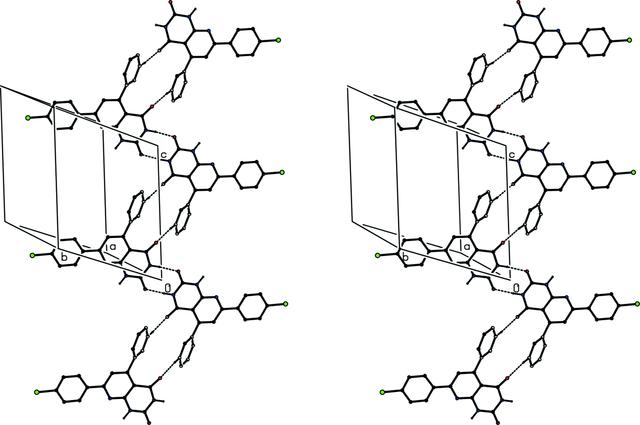

A stereoview of part of the crystal structure of XEBCUD (Wang et al., 2006), showing the formation of a chain of hydrogen-bonded R22(8) and R22(16) rings. The original atom coordinates have been employed and, for the sake of clarity, H atoms not involved in the motifs shown have been omitted, as have the dimethylformamide molecules. |
