Figure 4

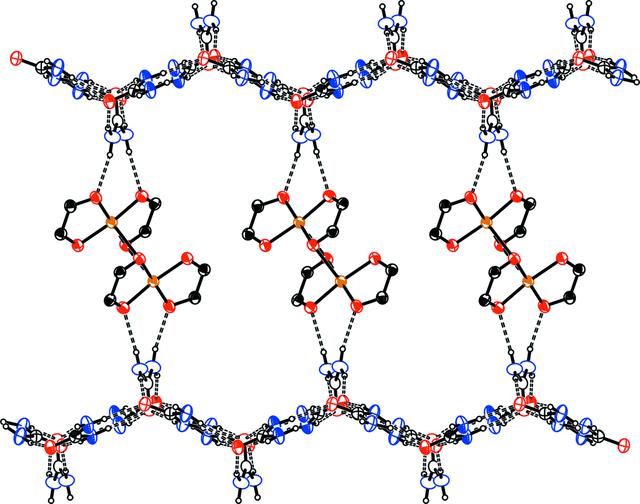

A projection diagram, showing the channels running parallel to [010] formed by crosslinking of the corrugated urea layers by the cis,cis dimers in (IV)[link]. Most of the hinokitiolate ligands and the acetone solvent mol­ecules have been omitted for clarity. Dashed lines indicate hydrogen bonds, and displacement ellipsoids are drawn at the 50% probability level. Boundary ellipses denote atoms O5, N1, N2 and C21, boundary and principal ellipses denote atoms O6, N3, N4 and C22, and octant-shaded ellipsoids denote atoms O7, N5, N6 and C23.
