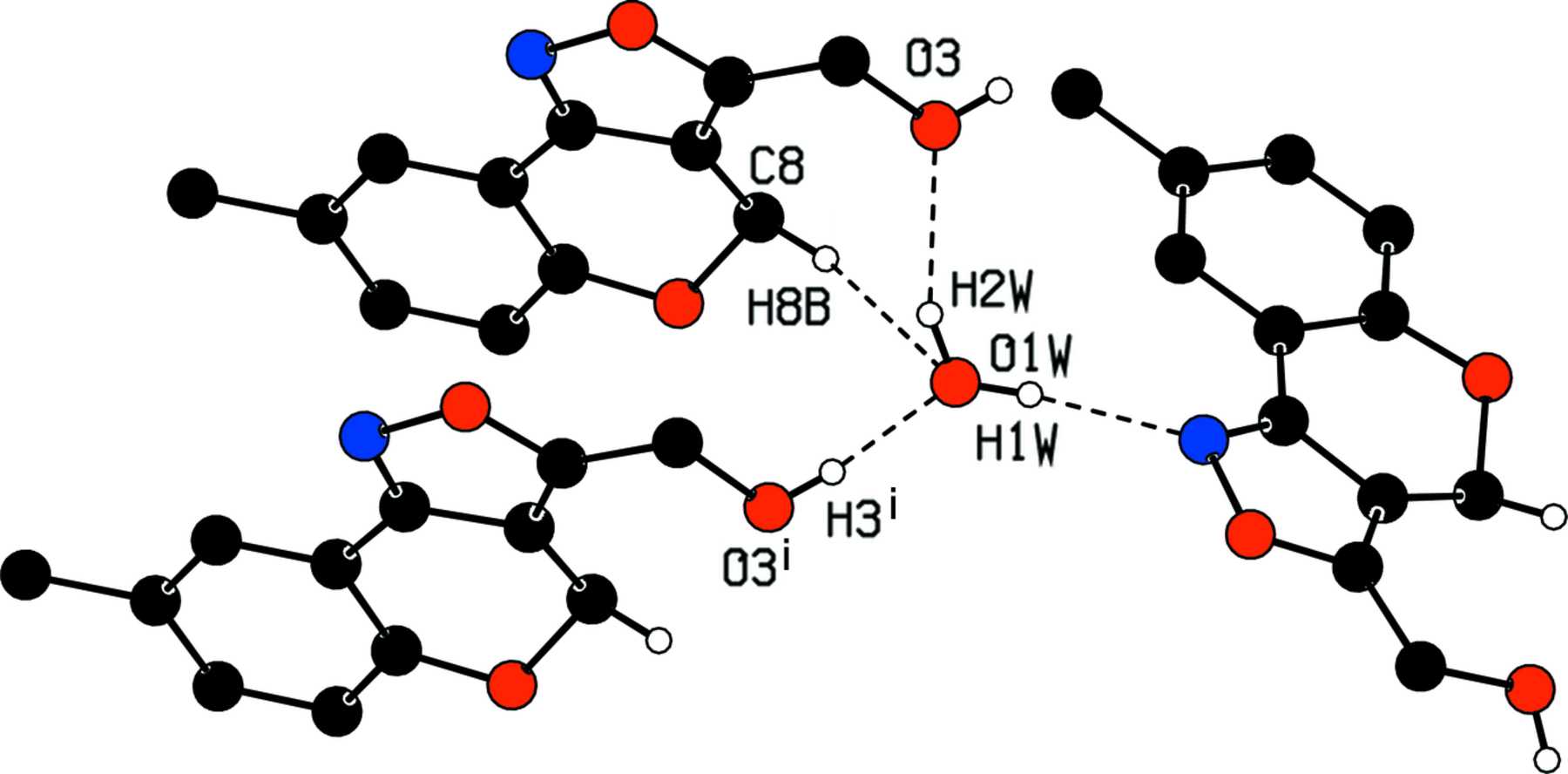

Part of the crystal structure of (II) ![[link]](../../../../../../logos/arrows/c_arr.gif) , showing the hydrogen bonding (dashed lines) around the water molecule. R22(8) motifs are formed through a combination of O—H⋯O and C—H⋯O, and O—H⋯N and C—H⋯O, hydrogen bonds. For the sake of clarity, H atoms not involved in the motifs shown have been omitted. [Symmetry code: (i) x, y + 1, z.] |
