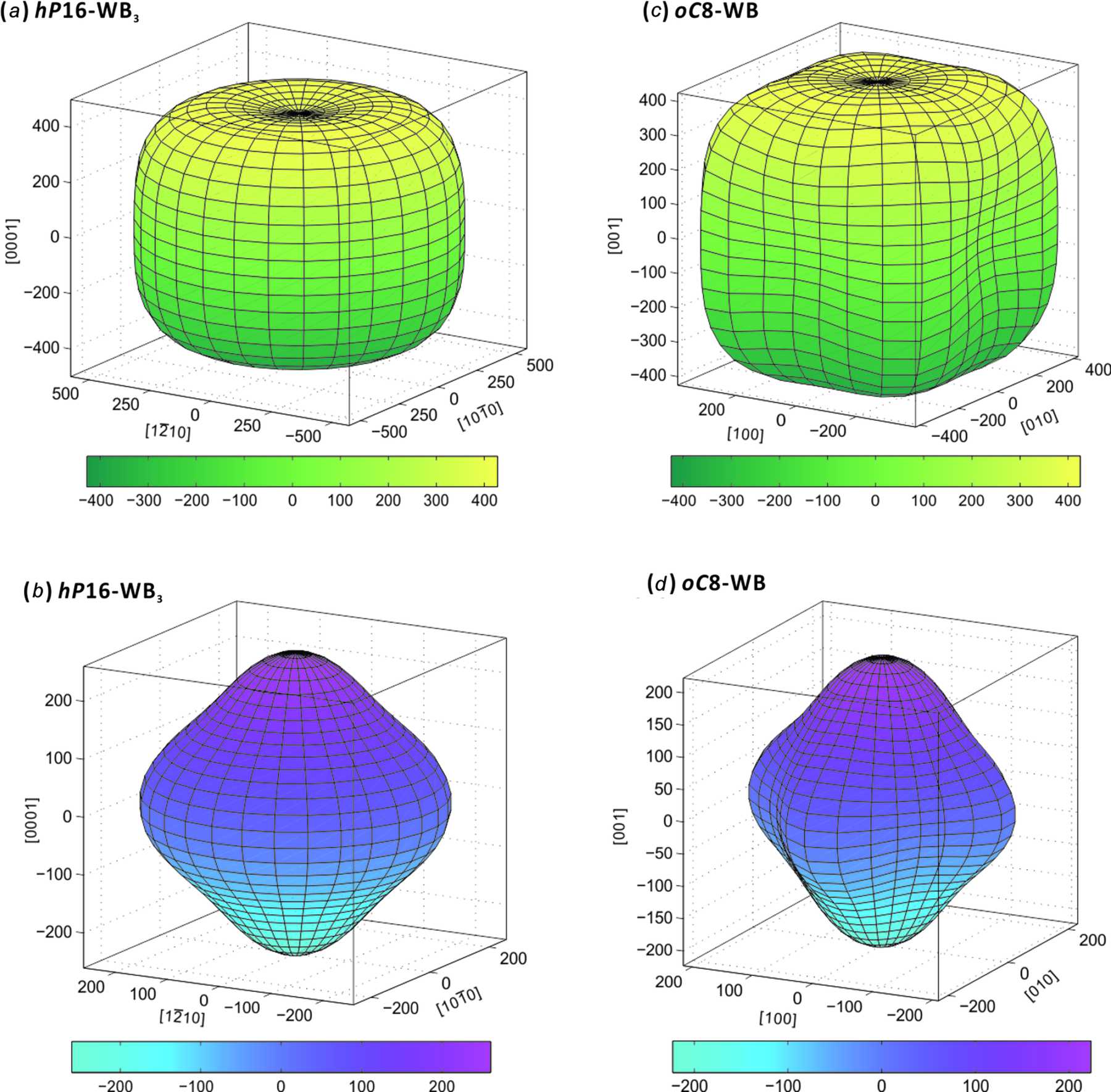

Figure 12
The representation surface for the crystallographic orientation-dependent (a)/(b) Young's modulus and (c)/(d) shear modulus of hP16-WB3 and oC8-WB, respectively, at 0 GPa. Note that negative values indicate the opposite directions to those of the positive values. The coloured horizoltal bar at the bottom of each image represents the value of the moduli in GPa. |
