Figure 4

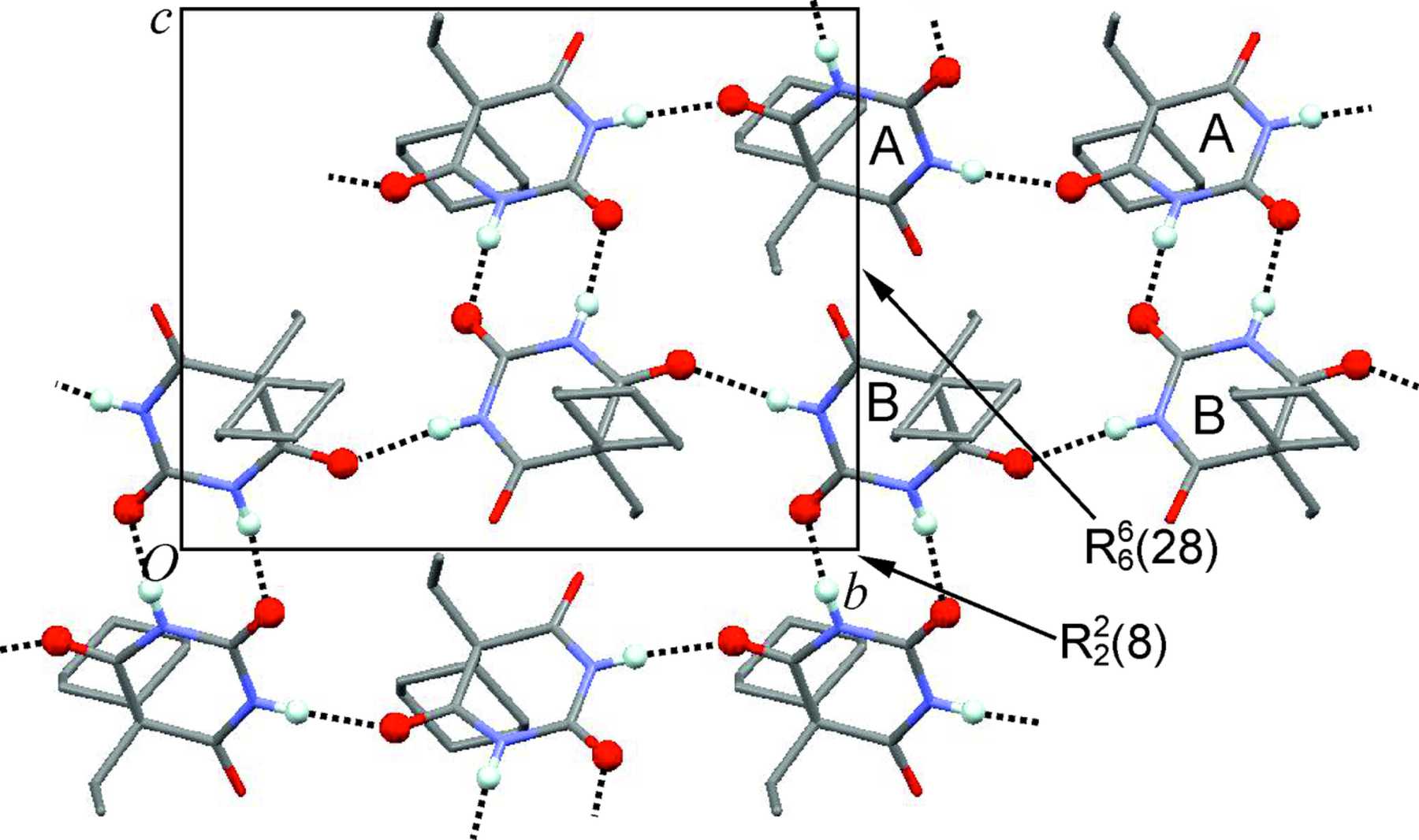

The hydrogen-bonded L-4 structure of (Ia), viewed along [100]. H and O atoms engaged in hydrogen bonding are depicted as balls and all other H atoms have been omitted for clarity. Dashed lines indicate hydrogen bonds. The two graph sets are highlighted.
