Porous ZnO/Co3O4/N-doped carbon nanocages synthesized via pyrolysis of complex metal–organic framework (MOF) hybrids as an advanced lithium-ion battery anode

Cheng, E.; Huang, S.; Chen, D.; Huang, R.; Wang, Q.; Hu, Z.; Jiang, Y.; Li, Z.; Zhao, B.; Chen, Z.

doi:10.1107/S2053229619008222

Acta Crystallographica Section C
Acta Crystallographica
Section C STRUCTURAL CHEMISTRY

IUCr IT WDC

home archive editors for authors for readers submit subscribe open access

view article

Figure 2

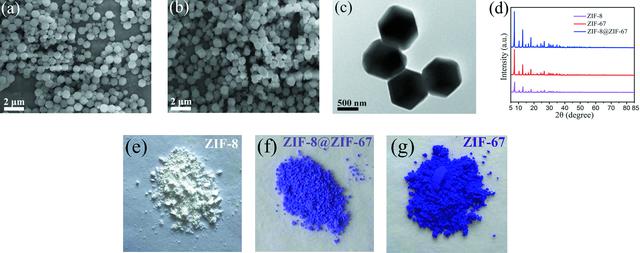

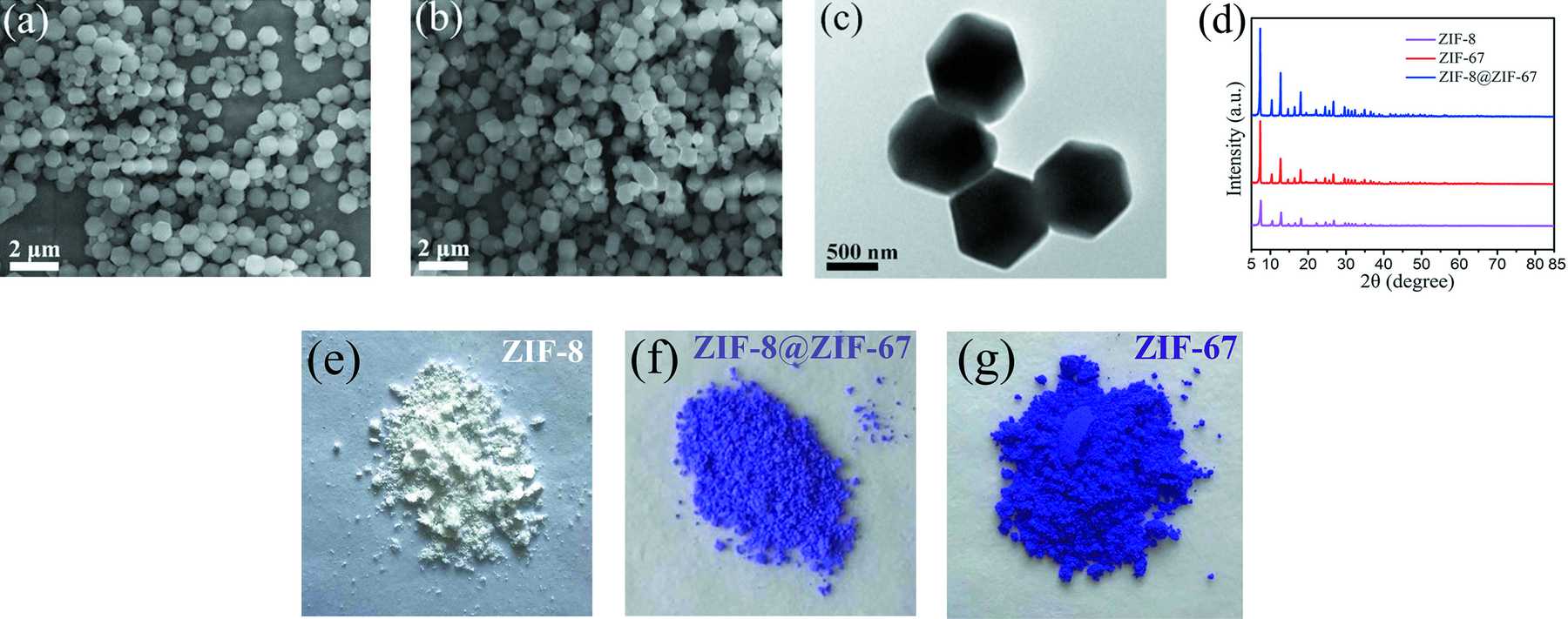

SEM images of (a) the as-synthesized ZIF-8 nanocrystals and (b) the ZIF-8@ZIF-67 core-shell nanostructure. (c) TEM image of ZIF-8@ZIF-67 and (d) XRD patterns of ZIF-8, ZIF-67 and ZIF-8@ZIF-67. Digital photographs of (e) ZIF-8, (f) ZIF-8@ZIF-67 and (g) ZIF-67 samples.
