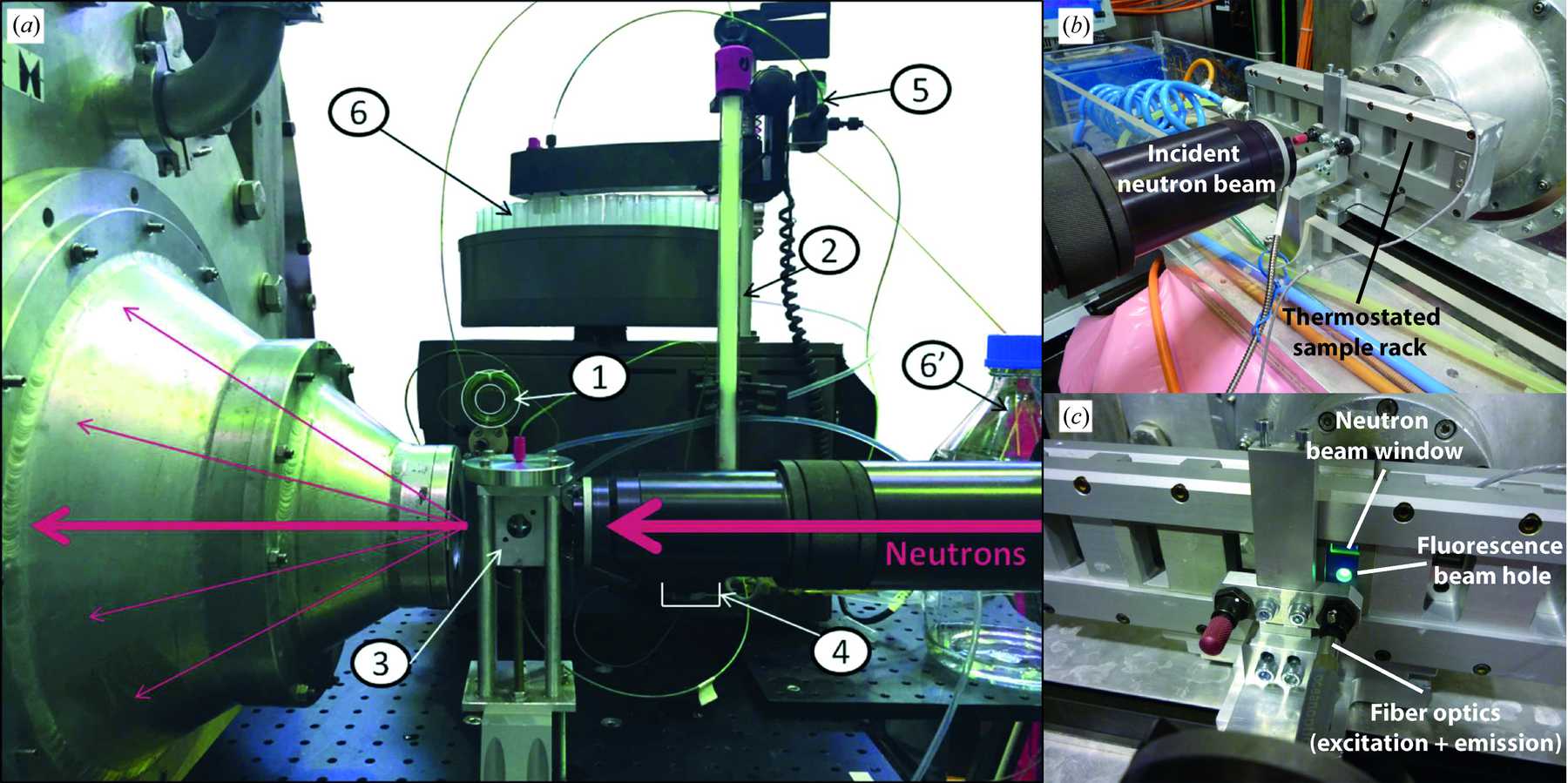

Figure 4
Recently developed sample environments for Bio-SANS. (a) Online size-exclusion chromatography (SEC) coupled to SANS on the D22 instrument at ILL (Jordan et al., 2016BB60): (1) injection loop, (2) size-exclusion column, (3) SANS sample cell, (4) UV–visible spectrophotometer, (5) valve, (6) fraction collector and (6′) waste container. (b, c) Online fluorescence device coupled to SANS on the D22 instrument at ILL (Ibrahim et al., 2017BB52).
