![[Figure 2]](wa5151fig2mag.jpg)
|
|

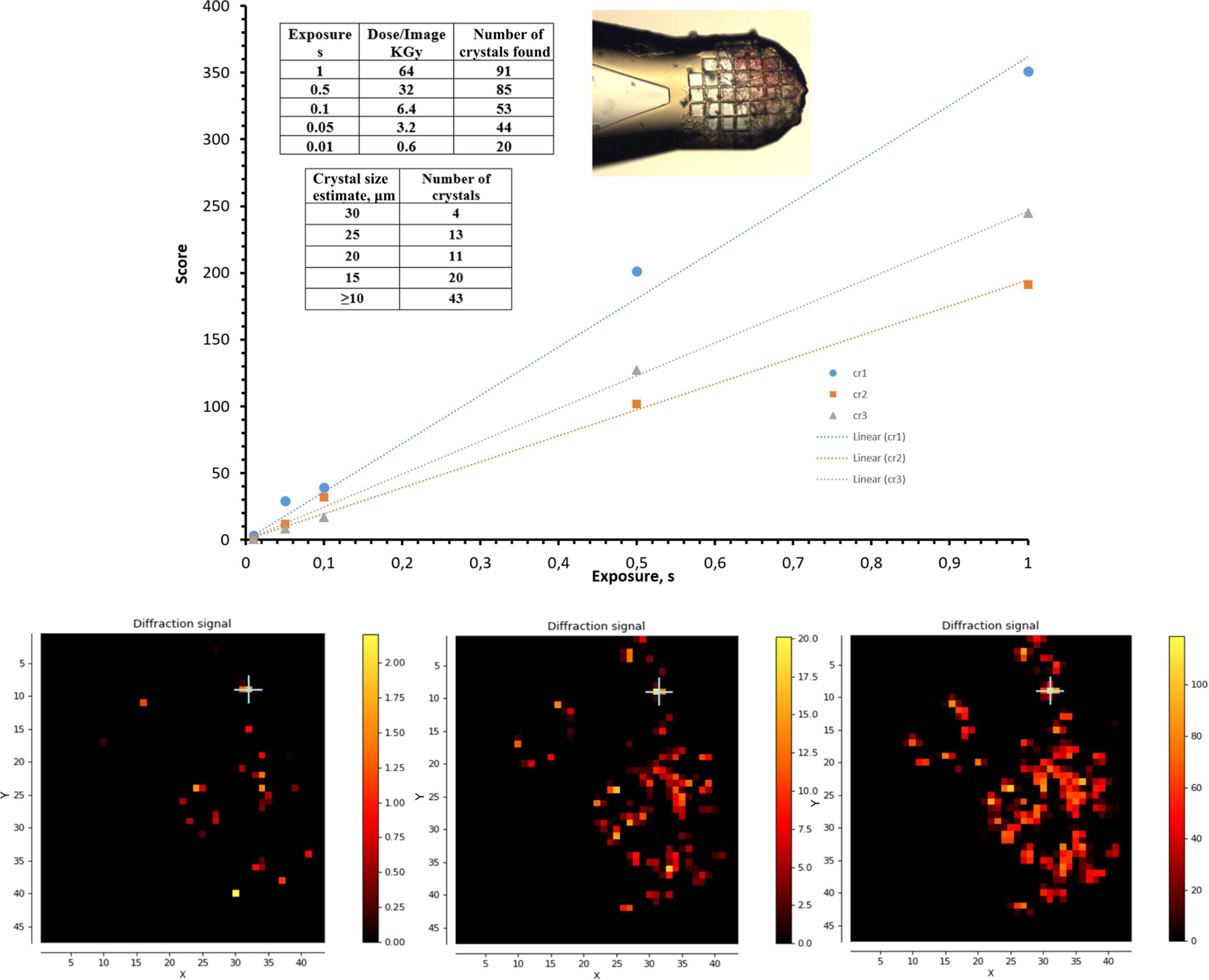

Figure 2
Test measurements to demonstrate the sensitivity of the method and diffraction signal score linearity. Top: the score estimates for three most strongly diffracting crystals (cr1, cr2 and cr3, all approximately 30 µm in size) show good linear proportionality versus exposure time; the two tables describe the experimental conditions, and a snapshot of the crystal holder as mounted on the goniometer is also shown. Bottom: three Dozor-score heat maps of the mesh scans with exposure 0.01, 0.1 and 1.0 s, respectively. X and Y are the two axes of the scan; X is parallel to the goniometer rotation axis, whereas Y is the laboratory vertical axis. Units on the axes are scan steps, which are equal to the beam size (10 µm). |
![[Figure 2]](wa5151fig2.jpg)
