![[Figure 2]](ni5031fig2mag.jpg)
|
|
Figure 2

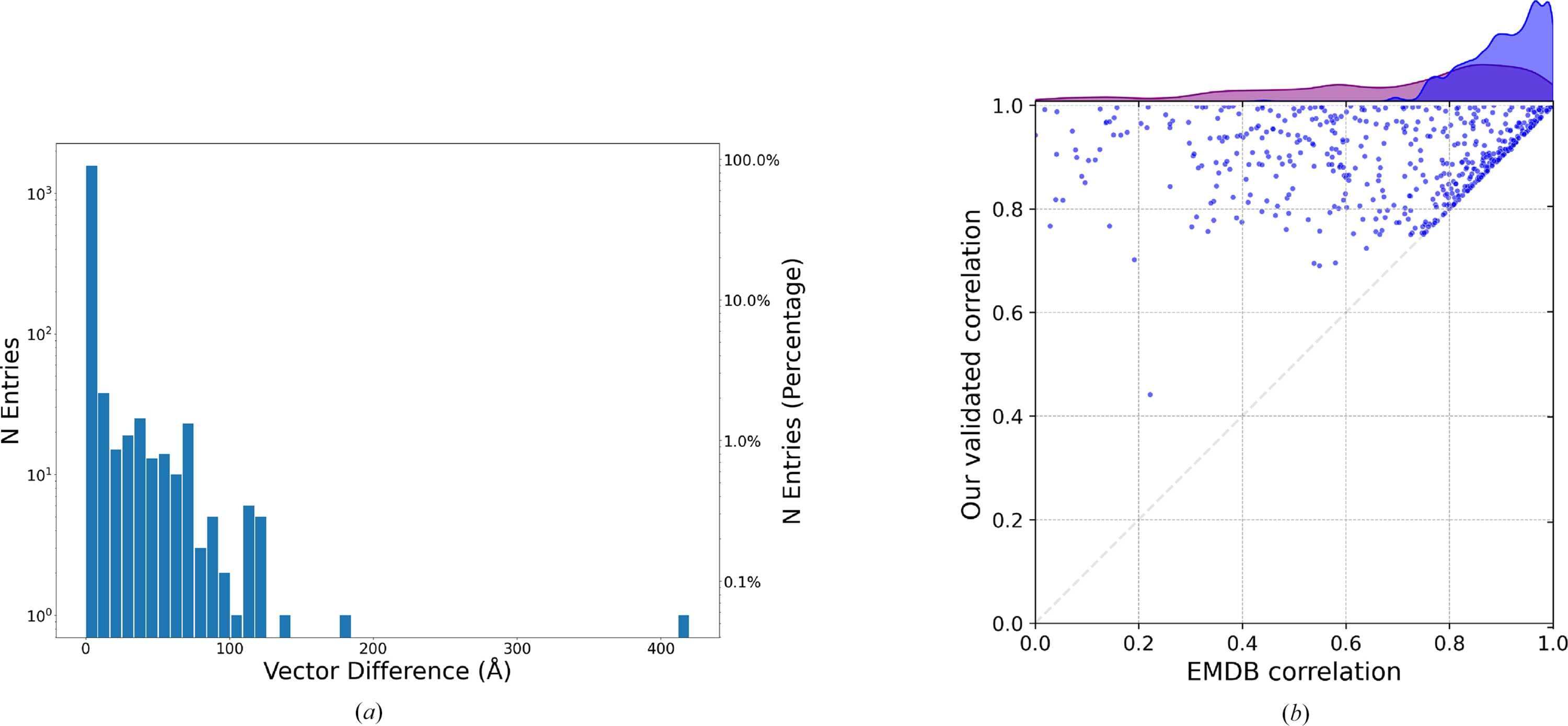

(a) A histogram displaying the distribution of vector differences between the deposited and validated helical parameters. The y axis represents the counts on a logarithmic scale. (b) A paired scatter plot comparing the cross-correlation scores between the symmetrized map and the original density map, using either the originally deposited helical parameters (x axis) or the validated helical parameters (y axis). Only entries with improvement of the cross-correlation score between the two sets of parameters were included in the plot. The histograms of the correlations from the deposited helical parameters (purple) and the validated helical parameters (blue) were displayed at the top of the plot. The histogram from the validated helical parameters was noticeably skewed to the right (i.e. better correlations). |
![[Figure 2]](ni5031fig2.jpg)
