Figure 4

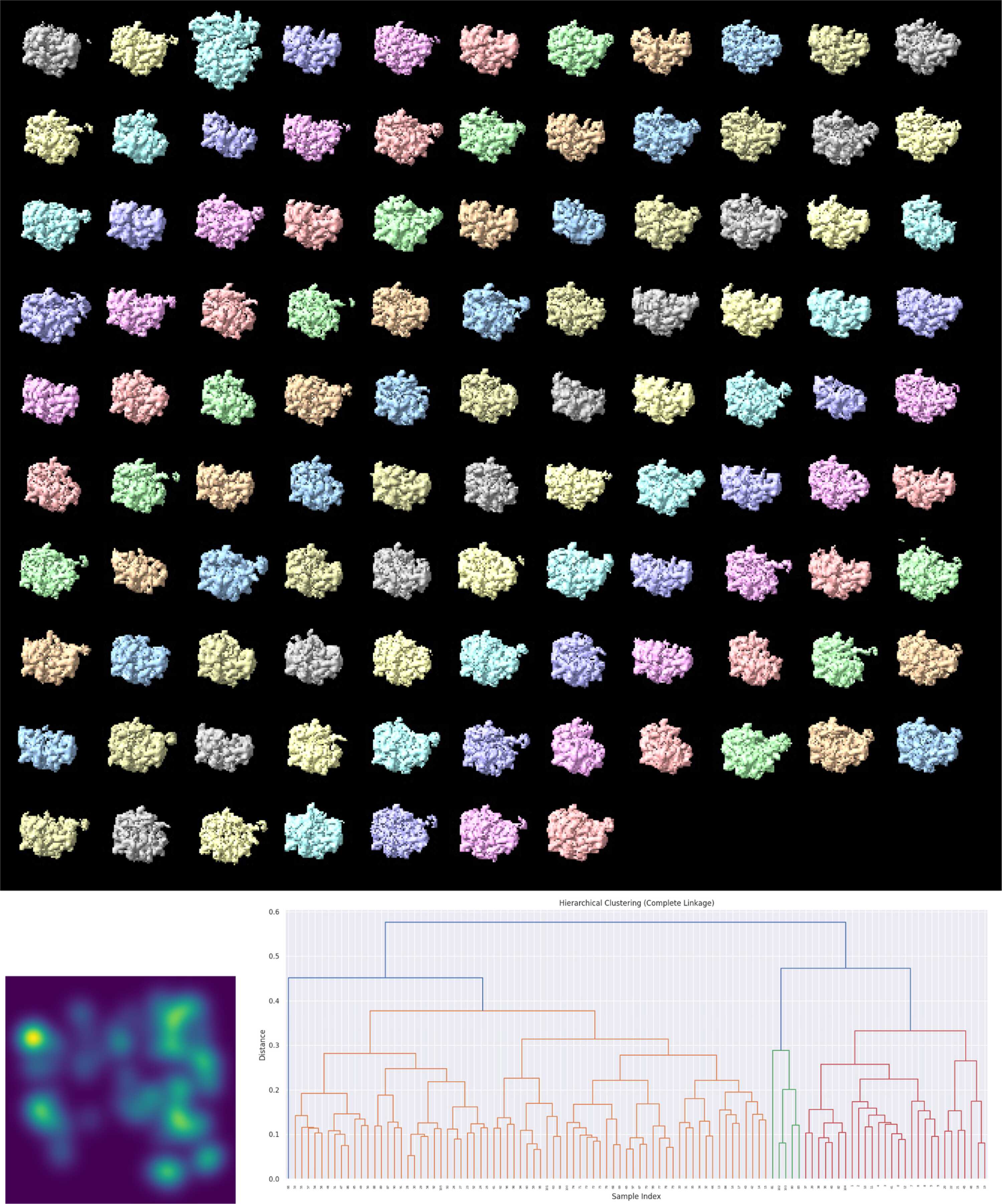

Classification of the bL17-limited E. coli 50S ribosome data set. Top: 3D reconstructions of the particles assigned to each of the classes. Bottom: StructMap projection of the maps and dendrogram representation of their hierarchical clustering. In the dendrogram, maps that are more similar are joined earlier (closer to the leaves), while those that are more dissimilar merge later (closer to the root). The color code is used solely to aid visualization, with groups defined by a default threshold set at 0.7 × max(distance).
