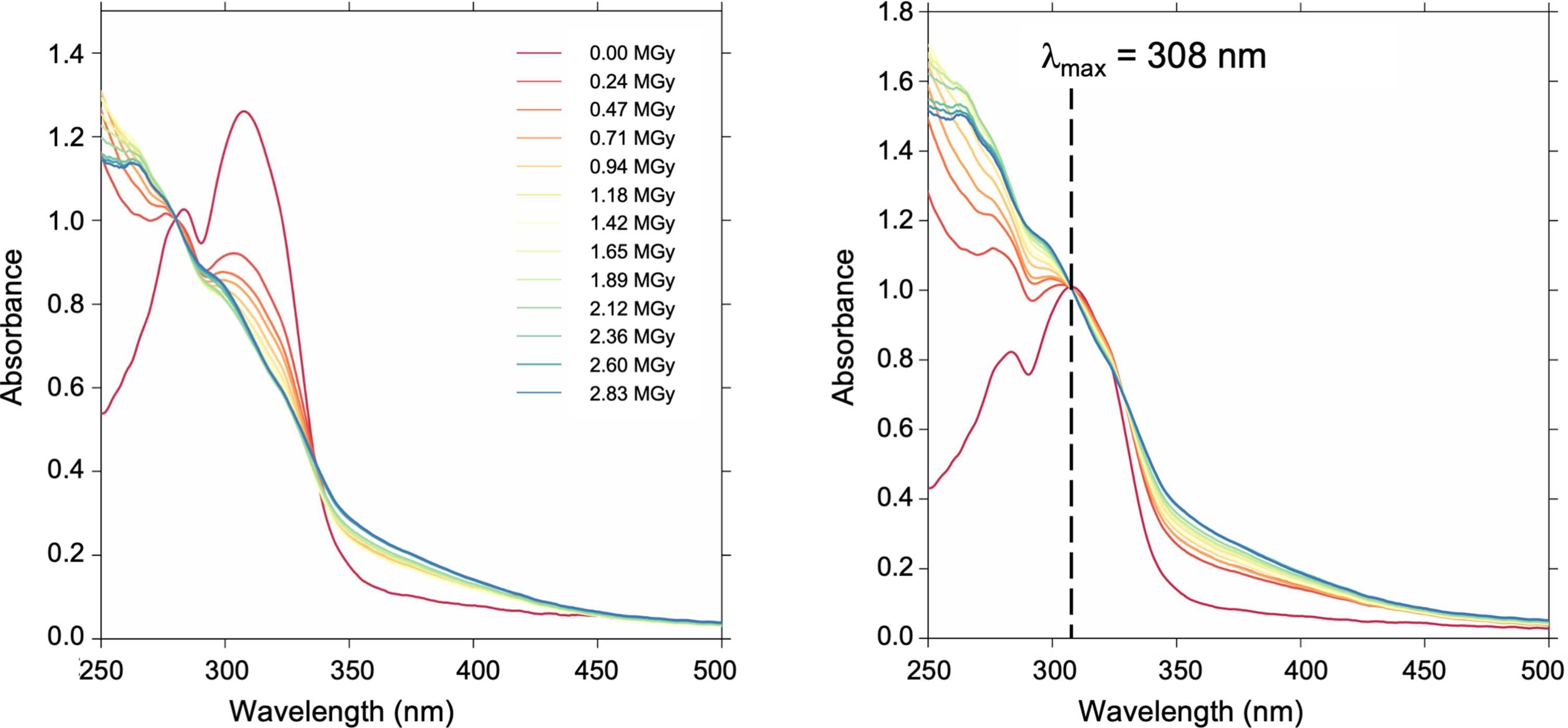

Figure 6
Monitoring specific radiation damage (SRD) in the Pdx1–I320 intermediate complex. Continuous UV–Vis absorption spectroscopy data collection up to 2.8 MGy suggests that the peak for the intermediate Pdx1–I320 decreases with continued X-ray exposure (left-hand panel). Normalizing to the intermediate peak (λmax = 308 nm) reveals degradation of the signal due to an increase of background/loss of photons in the deep-UV part of the spectrum (right-hand panel). Colour coding is indicated in the left-hand panel.
