Figure 2

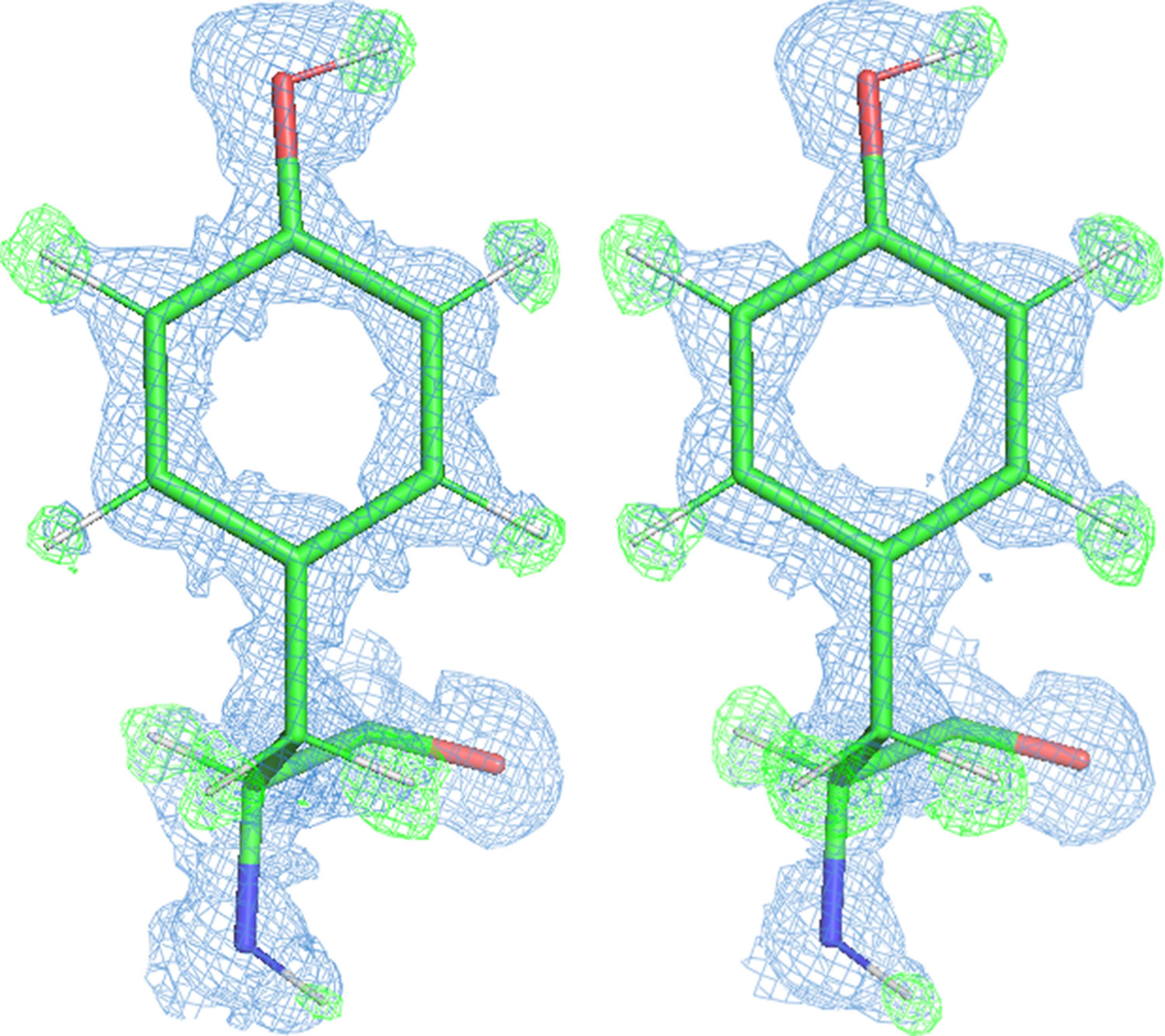

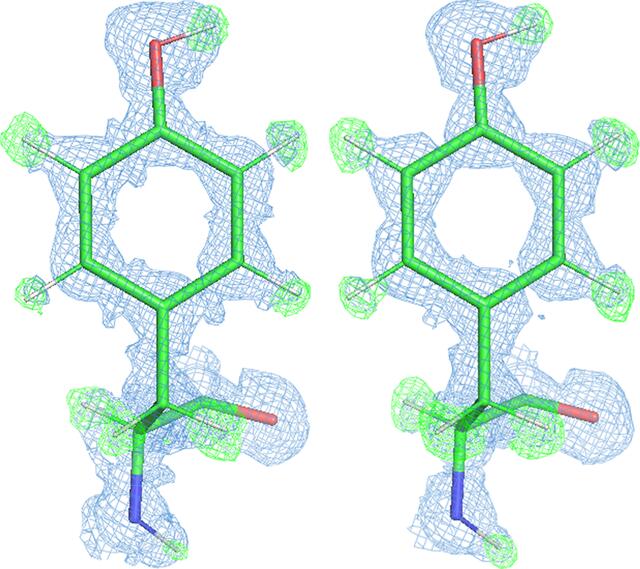

Tyr13 of rubredoxin is shown at 50 kGy (left) and 1 MGy (right) dose. The 2mFo − DFc densities (blue) are contoured at 0.5 e Å−3 and mFo − DFc hydrogen-omit densities (green) are contoured at 0.7 e Å−3. The 2mFo − DFc density centroids for hydrogens are closer to the parent atom, whereas mFo − DFc densities depict them closer to the nuclear position. H atoms are coloured grey and are placed at nuclear positions in the model. |
