![[Figure 3]](cb5156fig3mag.jpg)
|
|
Figure 3

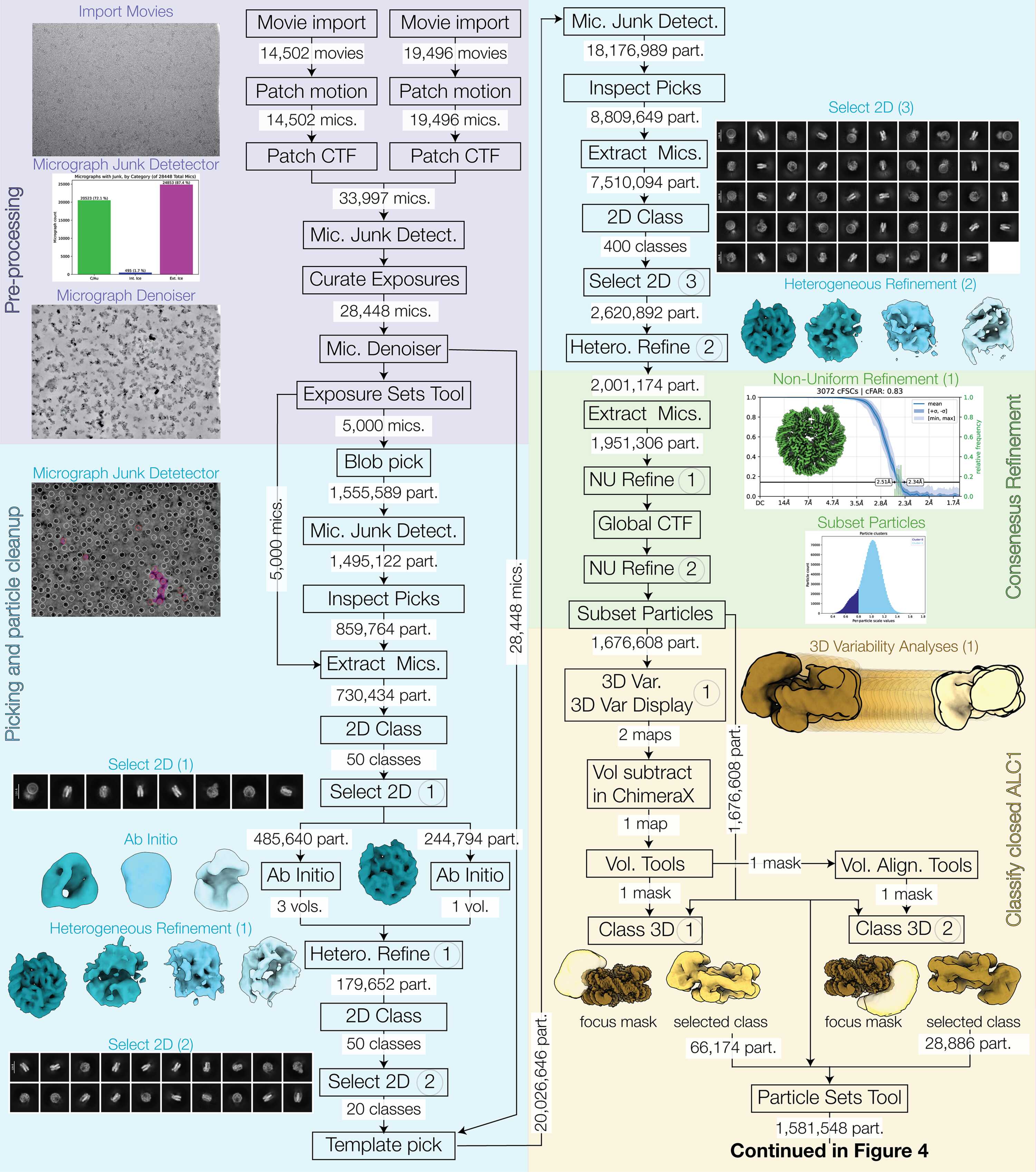

Flow chart of the image-processing workflow (continued in Fig. 4 ![[link]](../../../../../../logos/arrows/d_arr.gif){kind=small} ). The steps of each distinct stage are highlighted in different colors: pre-processing in purple, particle picking and curation in blue, consensus reconstruction in green and classification of the complexes with a closed ALC1 in yellow. Details are provided in Section 2.1, where settings are listed for all steps labeled with a circled number. |
