![[Figure 4]](cb5156fig4mag.jpg)
|
|
Figure 4

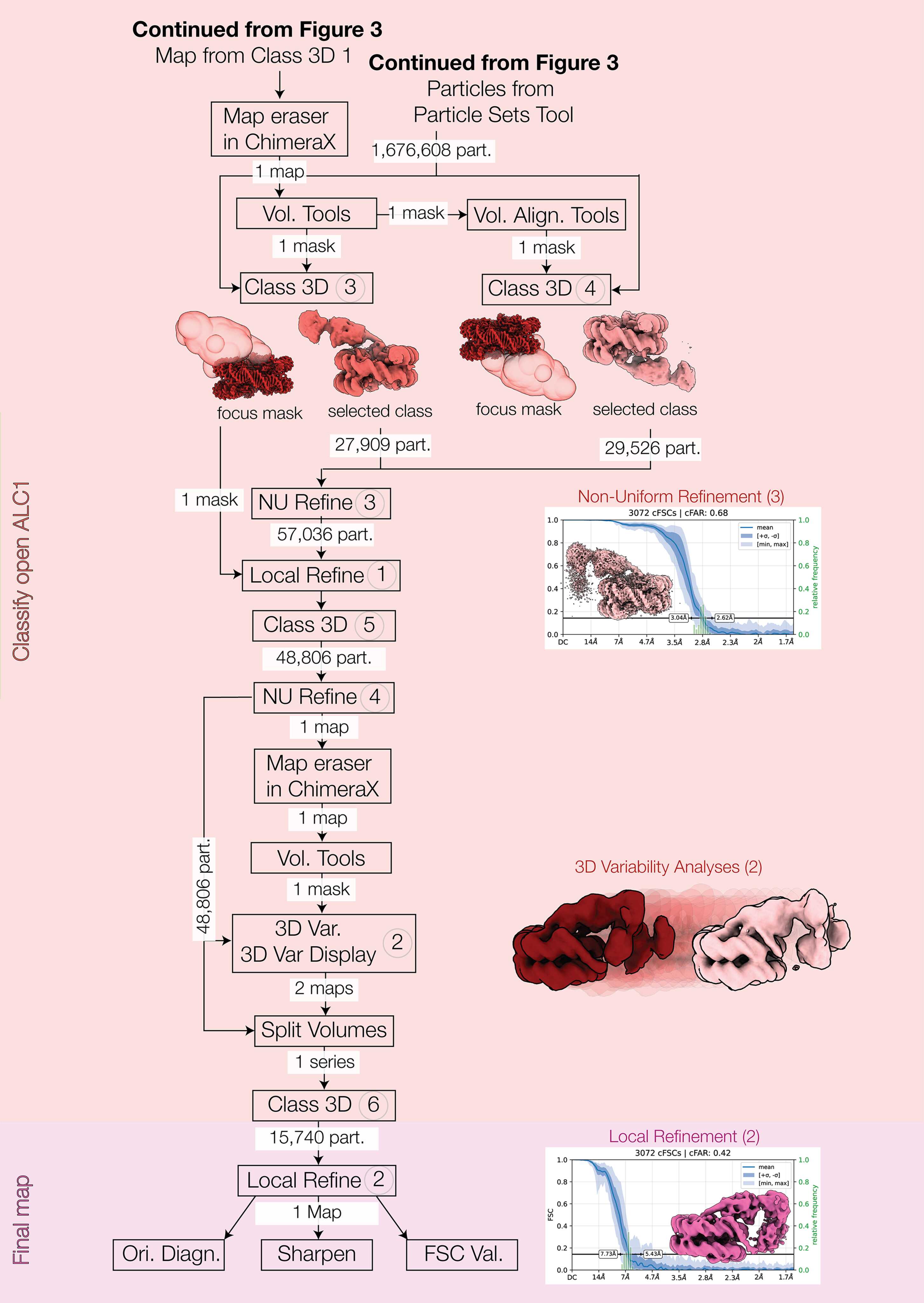

Flow chart of the image-processing workflow (continued from Fig. 3 ![[link]](../../../../../../logos/arrows/d_arr.gif){kind=small} ). The steps of each distinct stage are highlighted in different colors: classification of the complexes with an open ALC1 in red and final refinement of this open complex in pink. Details are provided in Section 2.1, where settings are listed for all steps labeled with a circled number. |
