![[Figure 2]](rr5260fig2mag.jpg)
|
|
Figure 2

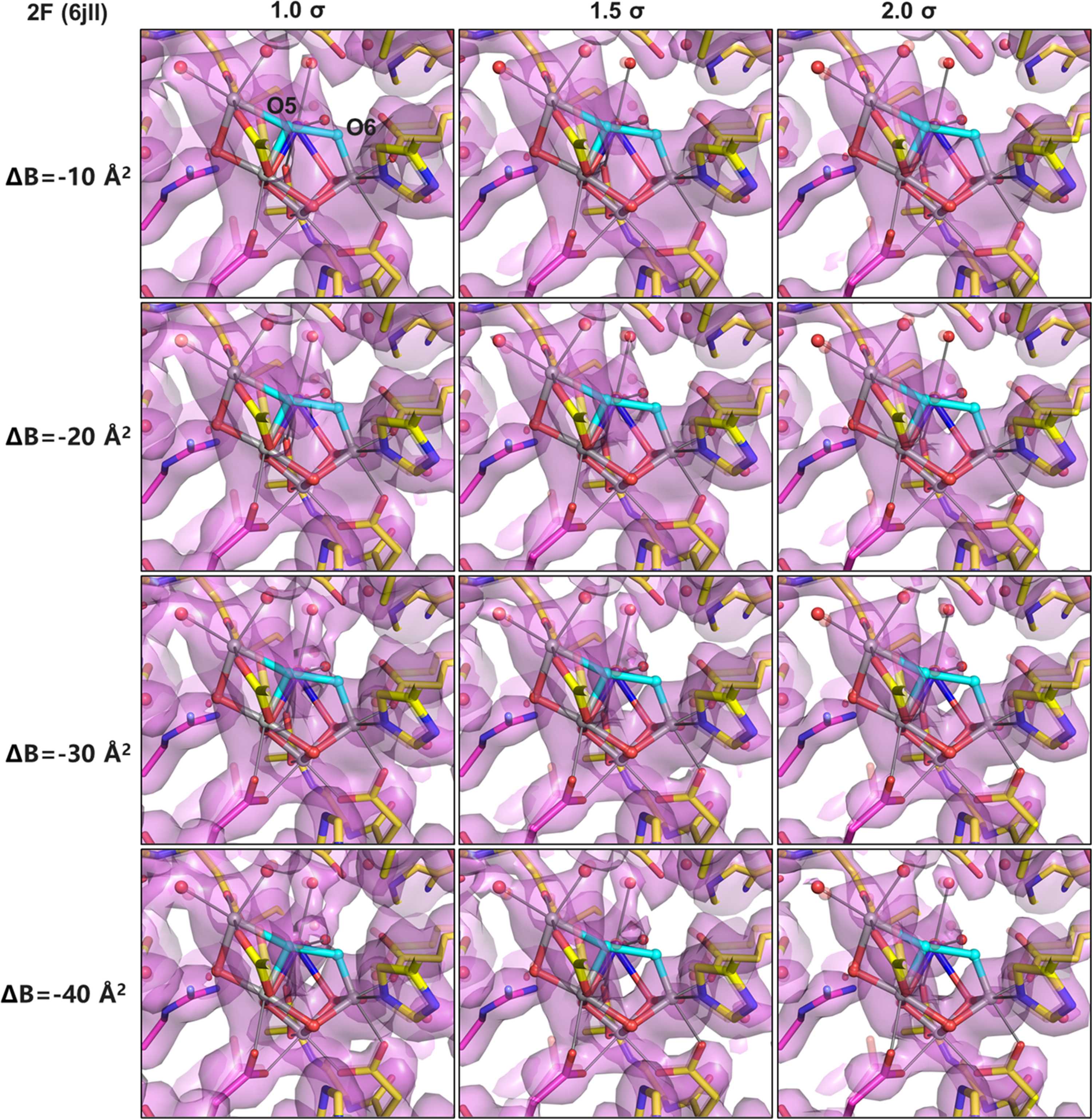

Omit maps of the OEC and its ligands calculated for the 2F dataset (PDB entry 6jll) under different map-processing conditions. The OEC and surrounding residues were omitted by setting their occupancies to zero, and all maps were calculated as 2Fo − Fc maps using phenix.maps. B-factor-sharpened maps are shown with sharpening values of −10, −20, −30 and −40 Å2, each contoured at 1.0σ, 1.5σ and 2.0σ, respectively. Within the OEC, manganese ions are colored gray, calcium ions blue, O1–O4 are shown in red and O5 and O6 are represented as cyan spheres. |
![[Figure 2]](rr5260fig2.jpg)
